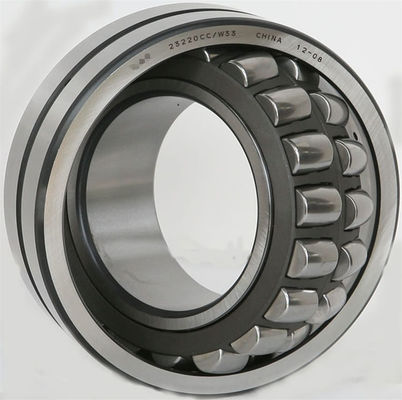

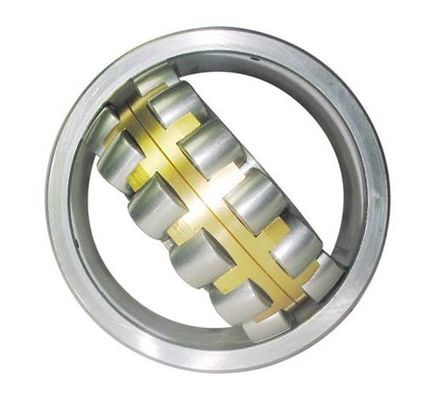

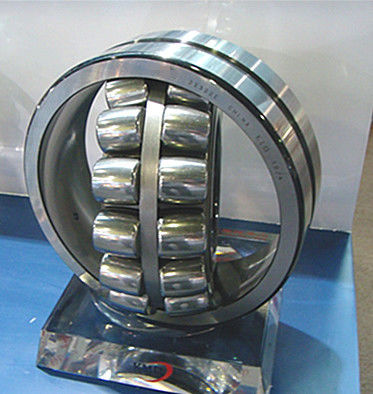

Good quality spherical roller bearings 24152CC/W33 24152CCK30/W33

Good quality spherical roller bearings 24152CC/W33 24152CCK30/W33 factory Good quality spherical roller bearings 24152CC/W33 24152CCK30/W33 factory Good quality spherical roller bearings 24152CC/W33 24152CCK30/W33 factory Good quality spherical roller bearings 24152CC/W33 24152CCK30/W33 factory

Large Image : Good quality spherical roller bearings 24152CC/W33 24152CCK30/W33

Product Details:

Place of Origin:China
Brand Name:TDGS
Certification:ISO9001:2000
Model Number:24152CC/W33 24152CCK30/W33

Payment & Shipping Terms:

Minimum Order Quantity:0-99 UNIT
Price:-
Packaging Details:PAPER BOX,CARTON.WOODEN CASE
Delivery Time:7days
Payment Terms:TT OR L/C
Supply Ability:1000000/YEAR
Detailed Product Description

Good quality spherical roller bearings 24152CC/W33 24152CCK30/W33

With central point of bearing as ball center, the spherically formed outer ring raceway can make self-aligninment. Their rolling elements linearly come into contact with the raceways of inner ring and outer ring. The Spherical roller bearings  divided into: cylindrical bore, tapered bore

can take great radial load, suitable for heavy machinery used in mining, metallurgical, paper-making and construction etc



Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) Bearing Number
d D B rs min Cr Cor Grease Oil (Approx.) TDGS
180 300 118 3 1,250 2,210 900 1,400 33.8 24136K30
180 300 118 3 1,250 2,210 900 1,400 33.8 24136K30W33C3
180 300 118 3 1,250 2,210 900 1,400 34.3 24136W33C3
190 320 128 3 1,420 2,480 850 1,300 42.8 24138
190 320 128 3 1,420 2,480 850 1,300 42.2 24138K30
190 320 128 3 1,420 2,480 850 1,300 42.2 24138K30W33C3
190 320 128 3 1,420 2,480 850 1,300 42.8 24138W33C3
200 340 140 3 1,630 2,900 800 1,200 53.4 24140
200 340 140 3 1,630 2,900 800 1,200 52.6 24140K30
200 340 140 3 1,630 2,900 800 1,200 52.6 24140K30W33C3
200 340 140 3 1,630 2,900 800 1,200 53.4 24140W33C3
220 370 150 4 1,880 3,400 720 1,100 67 24144
220 370 150 4 1,880 3,400 720 1,100 66 24144K30
220 370 150 4 1,880 3,400 720 1,100 66 24144K30W33C3
220 370 150 4 1,880 3,400 720 1,100 67 24144W33C3
240 400 160 4 2,110 3,800 650 1,000 82.2 24148
240 400 160 4 2,110 3,800 650 1,000 80.9 24148K30
240 400 160 4 2,110 3,800 650 1,000 80.9 24148K30W33C3
240 400 160 4 2,110 3,800 650 1,000 82.2 24148W33C3
260 440 180 4 2,510 4,600 600 920 114 24152




Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) Bearing Number
d D B rs min Cr Cor Grease Oil (Approx.) TDGS
260 440 180 4 2,510 4,600 600 920 112 24152K30
260 440 180 4 2,510 4,600 600 920 112 24152K30W33C3
260 440 180 4 2,510 4,600 600 920 114 24152W33C3
280 460 180 5 2,730 5,200 550 850 120 24156
280 460 180 5 2,730 5,200 550 850 118 24156K30
280 460 180 5 2,730 5,200 550 850 118 24156K30W33C3
280 460 180 5 2,730 5,200 550 850 120 24156W33C3
300 500 200 5 3,300 6,400 510 780 161 24160
300 500 200 5 3,300 6,400 510 780 159 24160K30
300 500 200 5 3,300 6,400 510 780 159 24160K30W33C3
300 500 200 5 3,300 6,400 510 780 161 24160W33C3
110 180 69 2 450 755 1,500 2,400 7.07 24122
110 180 69 2 450 755 1,500 2,400 6.96 24122K30
110 180 69 2 450 755 1,500 2,400 6.96 24122K30W33C3
110 180 69 2 450 755 1,500 2,400 7.07 24122W33C3
120 200 80 2 575 945 1,400 2,100 10.3 24124
120 200 80 2 575 945 1,400 2,100 10.1 24124K30
120 200 80 2 575 945 1,400 2,100 10.1 24124K30W33C3
120 200 80 2 575 945 1,400 2,100 10.3 24124W33C3
130 210 80 2 585 995 1,300 2,000 11 24126
