High limiting speed Cylindrical Spherical Roller Bearing 23022CCK/W33

Certifications
China good quality FAG Bearings on sales China good quality FAG Bearings on sales
Good quality . Thankyou.

—— Mr. Deven Shah

very happy with your goods.Great

—— Mr SNEHAL CHAUDHARI

I'm Online Chat Now

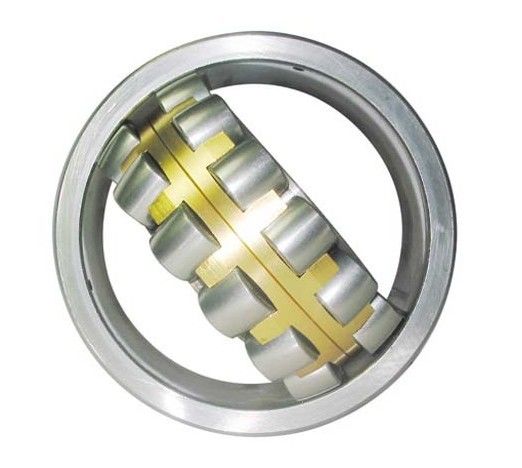

High limiting speed Cylindrical Spherical Roller Bearing 23022CCK/W33

High limiting speed Cylindrical Spherical Roller Bearing 23022CCK/W33 factory High limiting speed Cylindrical Spherical Roller Bearing 23022CCK/W33 factory

Large Image : High limiting speed Cylindrical Spherical Roller Bearing 23022CCK/W33

Product Details:

Place of Origin:China
Brand Name:TDGS
Certification:ISO9001:2000
Model Number:23022CCK/W33 23022CC/W33

Payment & Shipping Terms:

Minimum Order Quantity:0-99 UNIT
Price:-
Packaging Details:PAPER BOX,CARTON.WOODEN CASE
Delivery Time:7 days
Payment Terms:TT OR L/C
Supply Ability:1000000
Detailed Product Description



High limiting speed Cylindrical Spherical Roller Bearing 23022CCK/W33 23022CC/W33

With central point of bearing as ball center, the spherically formed outer ring raceway can make self-aligninment. Their rolling elements linearly come into contact with the raceways of inner ring and outer ring. The Spherical roller bearings  divided into: cylindrical bore, tapered bore

 can take great radial load, suitable for heavy machinery used in mining, metallurgical, paper-making and construction etc

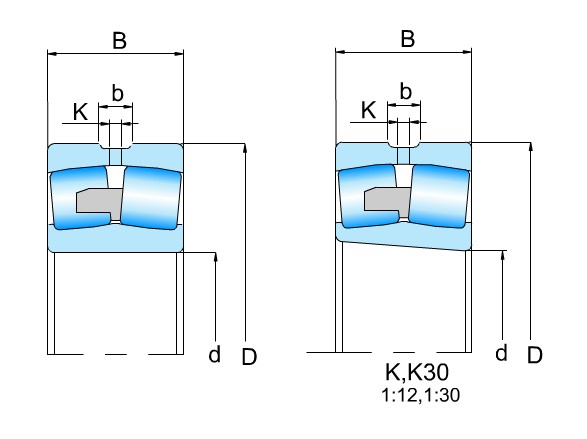

Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) Bearing Number
d D B rs min Cr Cor Grease Oil (Approx.) TDGS
110 170 45 2 282 455 1,800 2,800 3.71 23022
110 170 45 2 282 455 1,800 2,800 3.58 23022K
110 170 45 2 282 455 1,800 2,800 3.58 23022KW33C3
110 170 45 2 282 455 1,800 2,800 3.71 23022W33C3
120 180 46 2 296 495 1,700 2,600 4.05 23024
120 180 46 2 296 495 1,700 2,600 3.9 23024K
120 180 46 2 296 495 1,700 2,600 3.9 23024KW33C3
120 180 46 2 296 495 1,700 2,600 4.05 23024W33C3
130 200 52 2 375 620 1,500 2,300 5.9 23026
130 200 52 2 375 620 1,500 2,300 5.69 23026K
130 200 52 2 375 620 1,500 2,300 5.69 23026KW33C3
130 200 52 2 375 620 1,500 2,300 5.9 23026W33C3
140 210 53 2 405 690 1,400 2,200 6.35 23028
140 210 53 2 405 690 1,400 2,200 6.12 23028K
140 210 53 2 405 690 1,400 2,200 6.12 23028KW33C3
140 210 53 2 405 690 1,400 2,200 6.35 23028W33C3
150 225 56 2.1 445 775 1,300 2,000 7.73 23030
150 225 56 2.1 445 775 1,300 2,000 7.45 23030K
150 225 56 2.1 445 775 1,300 2,000 7.45 23030KW33C3
150 225 56 2.1 445 775 1,300 2,000 7.73 23030W33C3




Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) Bearing Number
d D B rs min Cr Cor Grease Oil (Approx.) TDGS
160 240 60 2.1 505 885 1,200 1,900 9.42 23032
160 240 60 2.1 505 885 1,200 1,900 9.09 23032K
160 240 60 2.1 505 885 1,200 1,900 9.09 23032KW33C3
160 240 60 2.1 505 885 1,200 1,900 9.42 23032W33C3
170 260 67 2.1 630 1,080 1,100 1,800 12.7 23034
170 260 67 2.1 630 1,080 1,100 1,800 12.3 23034K
170 260 67 2.1 630 1,080 1,100 1,800 12.3 23034KW33C3
170 260 67 2.1 630 1,080 1,100 1,800 12.7 23034W33C3
180 280 74 2.1 740 1,290 1,100 1,700 16.7 23036
180 280 74 2.1 740 1,290 1,100 1,700 16.1 23036K
180 280 74 2.1 740 1,290 1,100 1,700 16.1 23036KW33C3
180 280 74 2.1 740 1,290 1,100 1,700 16.7 23036W33C3
190 290 75 2.1 755 1,350 1,000 1,600 17.7 23038
190 290 75 2.1 755 1,350 1,000 1,600 17.1 23038K
190 290 75 2.1 755 1,350 1,000 1,600 17.1 23038KW33C3
190 290 75 2.1 755 1,350 1,000 1,600 17.7 23038W33C3
200 310 82 2.1 915 1,620 960 1,500 22.7 23040
200 310 82 2.1 915 1,620 960 1,500 21.9 23040K
200 310 82 2.1 915 1,620 960 1,500 21.9 23040KW33C3
200 310 82 2.1 915 1,620 960 1,500 22.7 23040W33C3




Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) Bearing Number
d D B rs min Cr Cor Grease Oil (Approx.) TDGS
220 340 90 3 1,060 1,920 870 1,300 29.9 23044
220 340 90 3 1,060 1,920 870 1,300 28.8 23044K
220 340 90 3 1,060 1,920 870 1,300 28.8 23044KW33C3
220 340 90 3 1,060 1,920 870 1,300 29.9 23044W33C3
240 360 92 3 1,130 2,140 790 1,200 33.4 23048
240 360 92 3 1,130 2,140 790 1,200 32.2 23048K
240 360 92 3 1,130 2,140 790 1,200 32.2 23048KW33C3
240 360 92 3 1,130 2,140 790 1,200 33.4 23048W33C3
260 400 104 4 1,420 2,620 720 1,100 48.5 23052
260 400 104 4 1,420 2,620 720 1,100 46.8 23052K
260 400 104 4 1,420 2,620 720 1,100 46.8 23052KW33C3
260 400 104 4 1,420 2,620 720 1,100 48.5 23052W33C3
280 420 106 4 1,510 2,920 660 1,000 52.4 23056
280 420 106 4 1,510 2,920 660 1,000 50.6 23056K
280 420 106 4 1,510 2,920 660 1,000 50.6 23056KW33C3
280 420 106 4 1,510 2,920 660 1,000 52.4 23056W33C3
300 460 118 4 1,890 3,550 610 940 72.4 23060
300 460 118 4 1,890 3,550 610 940 70.2 23060K
300 460 118 4 1,890 3,550 610 940 70.2 23060KW33C3
300 460 118 4 1,890 3,550 610 940 72.4 23060W33C3




Tag : spherical bearings;rollers bearings;self-aligning ball bearing
