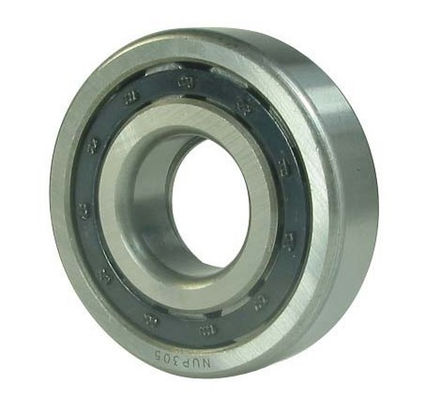

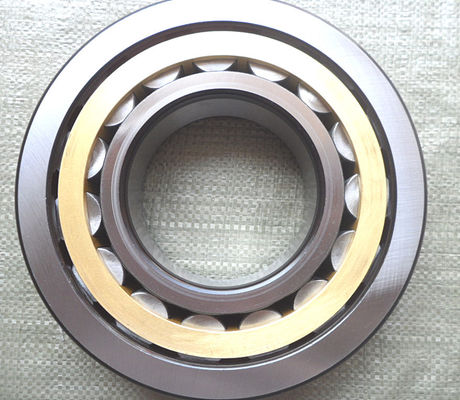

Large Image : Single row spheric roller bearing NUP222ECML NUP222ECP NUP2222ECML NUP2222ECP NUP322ECML NUP322ECP

Product Details:

Place of Origin:	China
Brand Name:	TDGS
Certification:	ISO9001:2000
Model Number:	NUP222ECML NUP222ECP NUP2222ECML NUP2222ECP NUP322ECML NUP322ECP

Payment & Shipping Terms:

Minimum Order Quantity:	0-99 UNIT
Price:	-
Packaging Details:	PAPER BOX,CARTON.WOODEN CASE
Delivery Time:	7days
Payment Terms:	TT OR L/C
Supply Ability:	1000000/year

Detailed Product Description

Single row spheric roller bearing NUP222ECML NUP222ECP NUP2222ECML NUP2222ECP NUP322ECML NUP322ECP

With central point of bearing as ball center, the spherically formed outer ring raceway can make self-aligninment. Their rolling elements linearly come into contact with the raceways of inner ring and outer ring. The Spherical roller bearings divided into: cylindrical bore, tapered bore

can take great radial load, suitable for heavy machinery used in mining, metallurgical, paper-making and construction etc

NUP

Boundary dimensions(mm)					Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	B	rs min	rs1 min	Cr	Cor	Grease	Oil	(Approx.)	TDGS
25	47	12	0.6	0.3	15.1	14.1	16,000	19,000	0.092	NUP1005
30	55	13	1	0.6	19.7	19.6	14,000	16,000	0.13	NUP1006
35	62	14	1	0.6	22.6	23.2	12,000	15,000	0.179	NUP1007
40	68	15	1	0.6	27.3	29.0	11,000	13,000	0.22	NUP1008
45	75	16	1	0.6	31.0	34.0	9,900	12,000	0.28	NUP1009
50	80	16	1	0.6	32.0	36.0	8,900	11,000	0.295	NUP1010
55	90	18	1.1	1	37.5	44.0	8,200	9,700	0.442	NUP1011
60	95	18	1.1	1	40.0	48.5	7,500	8,800	0.474	NUP1012
65	100	18	1.1	1	41.0	51.0	7,000	8,200	0.485	NUP1013
70	110	20	1.1	1	58.5	70.5	6,500	7,600	0.699	NUP1014
75	115	20	1.1	1	60.0	74.5	6,100	7,100	0.738	NUP1015
80	125	22	1.1	1	72.5	90.5	5,700	6,700	0.98	NUP1016
85	130	22	1.1	1	74.5	95.5	5,400	6,300	1.03	NUP1017
90	140	24	1.5	1.1	88.0	114	5,100	5,900	1.33	NUP1018
95	145	24	1.5	1.1	90.5	120	4,800	5,600	1.4	NUP1019
100	150	24	1.5	1.1	93.0	126	4,600	5,400	1.45	NUP1020
105	160	26	2	1.1	105	142	4,300	5,100	1.84	NUP1021
110	170	28	2	1.1	131	174	4,100	4,800	2.33	NUP1022
120	180	28	2	1.1	139	191	3,800	4,400	2.44	NUP1024
130	200	33	2	1.1	172	238	3,400	4,000	3.69	NUP1026

Boundary dimensions(mm)					Basic load ratings(kN)		Limiting speeds(rpm)		Mass(Kg)	Bearing Number
d	D	B	rs min	rs1 min	Cr	Cor	Grease	Oil	(Approx.)	TDGS
150	270	45	3	3	345	435	2,500	2,900	9.92	NUP230
150	270	45	3	3	450	595	2,200	2,600	11	NUP230E
130	230	40	3	3	365	455	2,600	3,100	6.9	NUP226E
140	250	42	3	3	310	400	2,700	3,100	7.88	NUP228
140	250	42	3	3	395	515	2,400	2,800	8.73	NUP228E
120	215	40	2.1	2.1	260	320	3,200	3,700	5.57	NUP224
120	215	40	2.1	2.1	335	420	2,900	3,400	5.97	NUP224E
130	230	40	3	3	270	340	2,900	3,400	6.3	NUP226
105	190	36	2.1	2.1	201	241	3,600	4,300	3.95	NUP221
110	200	38	2.1	2.1	240	290	3,400	4,000	4.63	NUP222
110	200	38	2.1	2.1	293	365	3,100	3,700	4.27	NUP222E
95	170	32	2.1	2.1	220	265	3,600	4,300	3.02	NUP219E
100	180	34	2.1	2.1	183	217	3,800	4,500	3.33	NUP220
100	180	34	2.1	2.1	249	305	3,500	4,100	3.66	NUP220E
90	160	30	2	2	152	178	4,300	5,000	2.3	NUP218
90	160	30	2	2	182	217	3,900	4,600	2.44	NUP218E
95	170	32	2.1	2.1	166	195	4,000	4,700	2.78	NUP219
80	140	26	2	2	139	167	4,400	5,100	1.67	NUP216E
85	150	28	2	2	120	140	4,500	5,300	1.87	NUP217
85	150	28	2	2	167	199	4,100	4,800	2.11	NUP217E
