Detailed Product Description

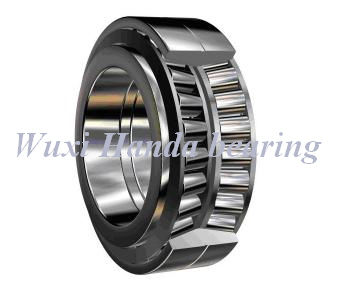

Standard taper roller bearings 32215 32917
Taper roller bearings are generally used to support combined load mainly consist of radial load.Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made. Tapered roller bearings are widely used in automotive, mill, mining, metallurgy, plastics and machinery.Can copy to do all kinds of brand packaging

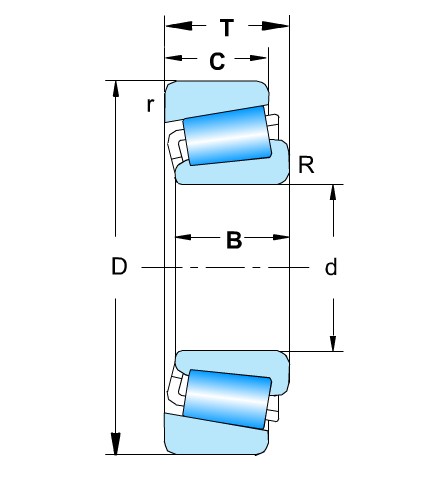

Dimensions
(mm) |
Basic load ratings
(kN) |
Cone |
Cup |
Mass
(Kg) |
Bearing No. |
|
d |
D |
T |
Cr |
Cor |
B |
R |
C |
r |
(Approx.) |
|
ISO 355 |
|
45 |
85 |
24.75 |
82.0 |
100 |
23 |
1.5 |
19 |
1.5 |
0.607 |
32209 |
T3DC045 |
|
50 |
90 |
24.75 |
87.5 |
109 |
23 |
1.5 |
19 |
1.5 |
0.648 |
32210 |
T3DC050 |
|
55 |
100 |
26.75 |
108 |
134 |
25 |
2 |
21 |
1.5 |
0.876 |
32211 |
T3DC055 |
|
60 |
110 |
29.75 |
130 |
164 |
28 |
2 |
24 |
1.5 |
1.18 |
32212 |
T3EC060 |
|
65 |
120 |
32.75 |
159 |
206 |
31 |
2 |
27 |
1.5 |
1.58 |
32213 |
T3EC065 |
|
70 |
125 |
33.25 |
166 |
220 |
31 |
2 |
27 |
1.5 |
1.68 |
32214 |
T3EC070 |
|
75 |
130 |
33.25 |
168 |
224 |
31 |
2 |
27 |
1.5 |
1.74 |
32215 |
T4DC075 |
|
80 |
140 |
35.25 |
199 |
265 |
33 |
2.5 |
28 |
2 |
2.18 |
32216 |
T3EC080 |
|
85 |
150 |
38.5 |
224 |
300 |
36 |
2.5 |
30 |
2 |
2.75 |
32217 |
T3EC085 |
|
90 |
160 |
42.5 |
262 |
360 |
40 |
2.5 |
34 |
2 |
3.49 |
32218 |
T3FC090 |
|
95 |
170 |
45.5 |
299 |
415 |
43 |
3 |
37 |
2.5 |
4.3 |
32219 |
T3FC095 |
|
100 |
180 |
49 |
330 |
465 |
46 |
3 |
39 |
2.5 |
5.12 |
32220 |
T3FC100 |
|
32 |
75 |
29.75 |
84.0 |
102 |
28 |
1.5 |
23 |
1.5 |
0.659 |
323/32X |
|
|
20 |
52 |
22.25 |
46.5 |
48.5 |
21 |
1.5 |
18 |
1.5 |
0.245 |
32304 |
T2FD020 |
|
25 |
62 |
25.25 |
61.5 |
64.5 |
24 |
1.5 |
20 |
1.5 |
0.381 |
32305 |
T2FD025 |
|
30 |
72 |
28.75 |
81.0 |
90.0 |
27 |
1.5 |
23 |
1.5 |
0.583 |
32306 |
T2FD030 |
|
35 |
80 |
32.75 |
101 |
115 |
31 |
2 |
25 |
1.5 |
0.787 |
32307 |
T2EE035 |
|
40 |
90 |
35.25 |
122 |
150 |
33 |
2 |
27 |
1.5 |
1.08 |
32308 |
T2FD040 |
|
45 |
100 |
38.25 |
154 |
191 |
36 |
2 |
30 |
1.5 |
1.46 |
32309 |
T2FD045 |
|
50 |
110 |
42.25 |
184 |
232 |
40 |
2.5 |
33 |
2 |
1.92 |
32310 |
T2FD050 |
Dimensions
(mm) |
Basic load ratings
(kN) |
Cone |
Cup |
Mass
(Kg) |
Bearing No. |
|
d |
D |
T |
Cr |
Cor |
B |
R |
C |
r |
(Approx.) |
|
ISO 355 |
|
55 |
120 |
45.5 |
215 |
275 |
43 |
2.5 |
35 |
2 |
2.44 |
32311 |
T2FD055 |
|
60 |
130 |
48.5 |
244 |
315 |
46 |
3 |
37 |
2.5 |
3.02 |
32312 |
T2FD060 |
|
65 |
140 |
51 |
273 |
350 |
48 |
3 |
39 |
2.5 |
3.66 |
32313 |
T2GD065 |
|
70 |
150 |
54 |
310 |
405 |
51 |
3 |
42 |
2.5 |
4.46 |
32314 |
T2GD070 |
|
75 |
160 |
58 |
355 |
470 |
55 |
3 |
45 |
2.5 |
5.35 |
32315 |
T2GD075 |
|
80 |
170 |
61.5 |
395 |
525 |
58 |
3 |
48 |
2.5 |
6.41 |
32316 |
T2GD080 |
|
85 |
180 |
63.5 |
405 |
525 |
60 |
4 |
49 |
3 |
7.15 |
32317 |
T2GD085 |
|
90 |
190 |
67.5 |
450 |
595 |
64 |
4 |
53 |
3 |
8.57 |
32318 |
T2GD090 |
|
95 |
200 |
71.5 |
505 |
670 |
67 |
4 |
55 |
3 |
10.1 |
32319 |
T2GD095 |
|
100 |
215 |
77.5 |
570 |
770 |
73 |
4 |
60 |
3 |
12.7 |
32320 |
T2GD100 |
|
55 |
80 |
17 |
44.5 |
73.5 |
17 |
1 |
14 |
1 |
0.274 |
32911 |
|
|
60 |
85 |
17 |
51.0 |
83.0 |
17 |
1 |
14 |
1 |
0.296 |
32912 |
|
|
65 |
90 |
17 |
48.5 |
85.0 |
17 |
1 |
14 |
1 |
0.315 |
32913 |
|
|
70 |
100 |
20 |
68.5 |
110 |
20 |
1 |
16 |
1 |
0.487 |
32914 |
|
|
75 |
105 |
20 |
69.5 |
114 |
20 |
1 |
16 |
1 |
0.511 |
32915 |
|
|
80 |
110 |
20 |
72.0 |
121 |
20 |
1 |
16 |
1 |
0.54 |
32916 |
|
|
85 |
120 |
23 |
94.0 |
157 |
23 |
1.5 |
18 |
1.5 |
0.773 |
32917 |
|
|
90 |
125 |
23 |
97.5 |
168 |
23 |
1.5 |
18 |
1.5 |
0.817 |
32918 |
|
|
95 |
130 |
23 |
101 |
178 |
23 |
1.5 |
18 |
1.5 |
0.851 |
32919 |
T2BC095 |
|
100 |
140 |
25 |
121 |
206 |
25 |
1.5 |
20 |
1.5 |
1.14 |
32920 |
|
