: Large Image : Chrome steel Needle Roller Bearing for limit radical spaceHeavy duty needle roller bearings

Product Details:

Place of Origin:	China
Brand Name:	TDGS
Certification:	ISO9001:2000
Model Number:	NA4916

Payment & Shipping Terms:

Minimum Order Quantity:	0-99 UNIT
Price:	-
Packaging Details:	PAPER BOX,CARTON.WOODEN CASE
Delivery Time:	7days
Payment Terms:	TT OR L/C
Supply Ability:	10000000/year

Detailed Product Description

Chrome steel Needle Roller Bearing for limit radical spaceHeavy duty needle roller bearings

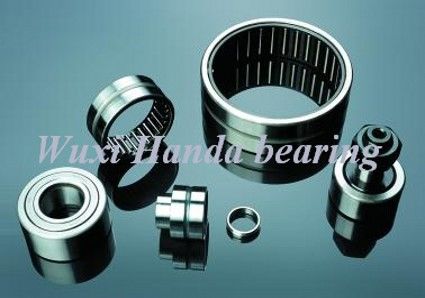

Needle roller bearing is roller bearing with long and thin cylindrical needle roller.It have high loading capacity though its cross section is narrow.So Needle roller bearing is especially suitable for limit radical space.

Boundary dimensions(mm)				Basic load ratings(N)		Limiting speeds(rpm)	Mass(g)	Bearing Number
d	Fw	D	B	Cr	Cor	Oil	(Approx.)	TDGS
22	28	39	17	12996	19175	14360	76	NA49/22
28	32	45	17	13900	20100	13832	90.7	NA49/28
32	40	52	20	19000	32600	11134	150	NA49/32
10	14	22	13	8006	9000	23700	21	NA4900
12	16	24	13	5047	6352	20000	25.1	NA4901
15	20	28	13	6447	9053	18800	32	NA4902
17	22	30	13	7010	10010	17000	32.8	NA4903
20	25	37	17	11912	16594	16200	70.2	NA4904
25	30	42	17	13452	20475	13832	76	NA4905
35	42	55	20	19800	41500	11134	151	NA4907
40	48	62	22	31036	63873	8567	123	NA4908
45	50	68	22	37000	96500	8052	260	NA4909
50	58	72	22	41000	72000	7526	264	NA4910
55	63	80	25	50600	96580	7156	386	NA4911
60	68	85	25	52800	110500	6022	412	NA4912
65	72	90	25	57500	110500	6022	435	NA4913
70	80	100	30	79000	154000	5111	712	NA4914
75	85	105	30	82000	158000	5111	765	NA4915
80	90	110	30	81000	170500	5111	870	NA4916
85	100	120	35	111000	237000	4600	1250	NA4917
