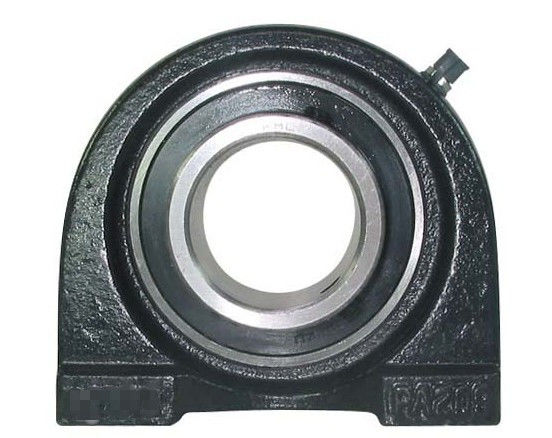

Large Image : High precision Pillow Block Ball Bearings UCPA207-20 UCPA210-32

Product Details:

Place of Origin:	China Japan
Brand Name:	TDGS ASAHI NACHI
Certification:	ISO9001:2000
Model Number:	UCPA207-20 UCPA210-32

Payment & Shipping Terms:

Minimum Order Quantity:	1-99 Sets
Price:	$1-$99
Packaging Details:	PAPER BOX,CARTON.WOODEN CASE
Delivery Time:	10 Days
Payment Terms:	TT OR L/C
Supply Ability:	36, 000 Sets/MONTH

Detailed Product Description

High precision Pillow Block Ball Bearings UCPA207-20 UCPA210-32

Pillow blocks, the most commonly used type of mounted units, are designed to provide shaft support where the mounting surface is parallel to the shaft axis. The bolt holes are usually slotted for adjustment during mounting. Pillow blocks are supplied in a variety of configurations. Pressed steel pillow block bearings are also available for light-duty applications.

Shaft Dia		Boundary dimensions(mm)											Bearing No.	Housing No.	Mass	Bearing Number
in.	mm	h	a	e	b	s	r	g	w	Bi	n	m	Bearing No.	Housing No.	Kg	TDGS
1-15/16		57.2	130.2	94	60	M16x2.0	25	14.3	115.9	51.6	19	32.6	UC210-31	PA210	2.6	UCPA210-31
2		57.2	130.2	94	60	M16x2.0	25	14.3	115.9	51.6	19	32.6	UC210-32	PA210	2.6	UCPA210-32
1-3/4		54.4	119.8	90	54	M14x2.0	25	12.7	107.9	49.2	19	30.2	UC209-28	PA209	2.2	UCPA209-28
	50	57.2	130.2	94	60	M16x2.0	25	14.3	115.9	51.6	19	32.6	UC210	PA210	2.6	UCPA210
1-7/8		57.2	130.2	94	60	M16x2.0	25	14.3	115.9	51.6	19	32.6	UC210-30	PA210	2.6	UCPA210-30
	45	54.4	119.8	90	54	M14x2.0	25	12.7	107.9	49.2	19	30.2	UC209	PA209	2.2	UCPA209
1-5/8		54.4	119.8	90	54	M14x2.0	25	12.7	107.9	49.2	19	30.2	UC209-26	PA209	2.2	UCPA209-26
1-11/16		54.4	119.8	90	54	M14x2.0	25	12.7	107.9	49.2	19	30.2	UC209-27	PA209	2.2	UCPA209-27
	40	49.2	115.9	84	54	M14x2.0	20	12.7	100.0	49.2	19	30.2	UC208	PA208	1.9	UCPA208
1-1/2		49.2	115.9	84	54	M14x2.0	20	12.7	100.0	49.2	19	30.2	UC208-24	PA208	1.9	UCPA208-24
1-9/16		49.2	115.9	84	54	M14x2.0	20	12.7	100.0	49.2	19	30.2	UC208-25	PA208	1.9	UCPA208-25
1-5/16		47.6	110.3	80	48	M14x2.0	20	12.7	95.3	42.9	17.5	25.4	UC207-21	PA207	1.7	UCPA207-21
1-3/8		47.6	110.3	80	48	M14x2.0	20	12.7	95.3	42.9	17.5	25.4	UC207-22	PA207	1.7	UCPA207-22
1-7/16		47.6	110.3	80	48	M14x2.0	20	12.7	95.3	42.9	17.5	25.4	UC207-23	PA207	1.7	UCPA207-23
1-1/4		42.8	93.7	66	48	M14x2.0	18	11.9	84.1	38.1	15.9	22.2	UC206-20	PA206	1.2	UCPA206-20
	35	47.6	110.3	80	48	M14x2.0	20	12.7	95.3	42.9	17.5	25.4	UC207	PA207	1.7	UCPA207
1-1/4		47.6	110.3	80	48	M14x2.0	20	12.7	95.3	42.9	17.5	25.4	UC207-20	PA207	1.7	UCPA207-20
1-1/16		42.8	93.7	66	48	M14x2.0	18	11.9	84.1	38.1	15.9	22.2	UC206-17	PA206	1.2	UCPA206-17
1-1/8		42.8	93.7	66	48	M14x2.0	18	11.9	84.1	38.1	15.9	22.2	UC206-18	PA206	1.2	UCPA206-18
1-3/16		42.8	93.7	66	48	M14x2.0	18	11.9	84.1	38.1	15.9	22.2	UC206-19	PA206	1.2	UCPA206-19

Shaft Dia		Boundary dimensions(mm)											Bearing No.	Housing No.	Mass	Bearing Number
in.	mm	h	a	e	b	s	r	g	w	Bi	n	m	Bearing No.	Housing No.	Kg	TDGS
15/16		36.5	84.1	56	38	M10x1.5	15	11.9	72.2	34	14.3	19.7	UC205-15	PA205	0.8	UCPA205-15
1		36.5	84.1	56	38	M10x1.5	15	11.9	72.2	34	14.3	19.7	UC205-16	PA205	0.8	UCPA205-16
	30	42.8	93.7	66	48	M14x2.0	18	11.9	84.1	38.1	15.9	22.2	UC206	PA206	1.2	UCPA206
3/4		30.2	76.2	52	38	M10x1.5	12	11.1	61.9	31	12.7	18.3	UC204-12	PA204	0.6	UCPA204-12
	25	36.5	84.1	56	38	M10x1.5	15	11.9	72.2	34	14.3	19.7	UC205	PA205	0.8	UCPA205
7/8		36.5	84.1	56	38	M10x1.5	15	11.9	72.2	34	14.3	19.7	UC205-14	PA205	0.8	UCPA205-14
1/2		30.2	76.2	52	38	M10x1.5	12	11.1	61.9	31	12.7	18.3	UC201-8	PA204	0.6	UCPA201-8
5/8		30.2	76.2	52	38	M10x1.5	12	11.1	61.9	31	12.7	18.3	UC202-10	PA204	0.6	UCPA202-10
	20	30.2	76.2	52	38	M10x1.5	12	11.1	61.9	31	12.7	18.3	UC204	PA204	0.6	UCPA204
