Large Image : Pillow Block Ball Bearings OEM / ODM service offer UCF 205 UCP208-24

Product Details:

Place of Origin:	CHINA
Brand Name:	ASAHI NTN NSK TDGS
Certification:	ISO9001:2000
Model Number:	UCF 205 UCP208-24

Payment & Shipping Terms:

Minimum Order Quantity:	1-99 Sets
Price:	$1-$99
Packaging Details:	PAPER BOX,CARTON.WOODEN CASE
Delivery Time:	10 Days
Payment Terms:	TT OR L/C
Supply Ability:	36, 000 Sets

Detailed Product Description

Pillow Block Ball Bearings OEM / ODM service offer UCF 205 UCP208-24

Pillow blocks, the most commonly used type of mounted units, are designed to provide shaft support where the mounting surface is parallel to the shaft axis. The bolt holes are usually slotted for adjustment during mounting. Pillow blocks are supplied in a variety of configurations. Pressed steel pillow block bearings are also available for light-duty applications.

Series: UCP, UCF, UCPA, UCFL , UCT, UCFC etc.

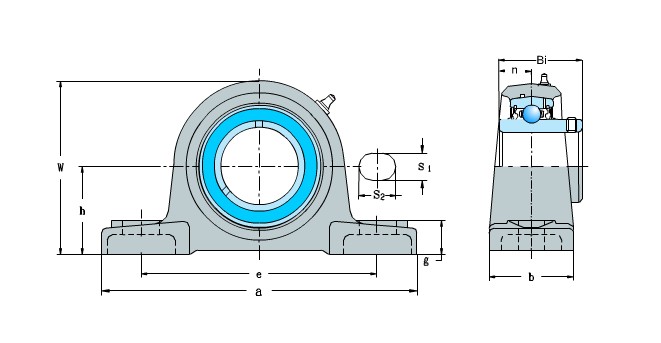

Shaft Dia		Boundary dimensions(mm)										Bolt Size	Bearing No.	Housing No.	Mass	Bearing Number
in.	mm	h	a	e	b	s1	s2	g	w	Bi	n	Bolt Size	Bearing No.	Housing No.	Kg	TDGS
1/2		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC201-8	P204	0.8	UCP201-8
5/8		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC202-10	P204	0.8	UCP202-10
	20	33.3	127	95	38	13	16	15	65	31	12.7	M10	UC204	P204	0.8	UCP204
3/4		33.3	127	95	38	13	16	15	65	31	12.7	3/8	UC204-12	P204	0.8	UCP204-12
	25	36.6	140	105	38	13	16	16	70	34	14.3	M10	UC205	P205	1	UCP205
7/8		36.6	140	105	38	13	16	16	70	34	14.3	3/8	UC205-14	P205	1	UCP205-14
15/16		36.6	140	105	38	13	16	16	70	34	14.3	3/8	UC205-15	P205	1	UCP205-15
1		36.6	140	105	38	13	16	16	70	34	14.3	3/8	UC205-16	P205	1	UCP205-16
	30	42.9	165	121	48	17	21	18	83	38.1	15.9	M14	UC206	P206	1.6	UCP206
1-1/16		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-17	P206	1.6	UCP206-17
1-1/8		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-18	P206	1.6	UCP206-18
1-3/16		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-19	P206	1.6	UCP206-19
1-1/4		42.9	165	121	48	17	21	18	83	38.1	15.9	1/2	UC206-20	P206	1.6	UCP206-20
	35	47.6	167	127	48	17	21	19	94	42.9	17.5	M14	UC207	P207	2.1	UCP207
1-1/4		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-20	P207	2.1	UCP207-20
1-5/16		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-21	P207	2.1	UCP207-21
1-3/8		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-22	P207	2.1	UCP207-22
1-7/16		47.6	167	127	48	17	21	19	94	42.9	17.5	1/2	UC207-23	P207	2.1	UCP207-23
	40	49.2	184	137	54	17	25	19	100	49.2	19.0	M14	UC208	P208	2.6	UCP208
1-1/2		49.2	184	137	54	17	25	19	100	49.2	19.0	1/2	UC208-24	P208	2.6	UCP208-24

Shaft Dia		Boundary dimensions(mm)										Bolt Size	Bearing No.	Housing No.	Mass	Bearing Number
in.	mm	h	a	e	b	s1	s2	g	w	Bi	n	Bolt Size	Bearing No.	Housing No.	Kg	TDGS
1-9/16		49.2	184	137	54	17	25	19	100	49.2	19.0	1/2	UC208-25	P208	2.6	UCP208-25
	45	54.0	190	146	54	17	25	20	108	49.2	19.0	M14	UC209	P209	3	UCP209
1-5/8		54.0	190	146	54	17	25	20	108	49.2	19.0	1/2	UC209-26	P209	3	UCP209-26
1-11/16		54.0	190	146	54	17	25	20	108	49.2	19.0	1/2	UC209-27	P209	3	UCP209-27
1-3/4		54.0	190	146	54	17	25	20	108	49.2	19.0	1/2	UC209-28	P209	3	UCP209-28
	50	57.2	206	159	60	20	25	22	114	51.6	19.0	M16	UC210	P210	3.6	UCP210
1-7/8		57.2	206	159	60	20	25	22	114	51.6	19.0	5/8	UC210-30	P210	3.6	UCP210-30
1-15/16		57.2	206	159	60	20	25	22	114	51.6	19.0	5/8	UC210-31	P210	3.6	UCP210-31
2		57.2	206	159	60	20	25	22	114	51.6	19.0	5/8	UC210-32	P210	3.6	UCP210-32
	55	63.5	219	171	60	20	25	22	126	55.6	22.2	M16	UC211	P211	4.4	UCP211
2		63.5	219	171	60	20	25	22	126	55.6	22.2	5/8	UC211-32	P211	4.4	UCP211-32
2-1/8		63.5	219	171	60	20	25	22	126	55.6	22.2	5/8	UC211-34	P211	4.4	UCP211-34
2-3/16		63.5	219	171	60	20	25	22	126	55.6	22.2	5/8	UC211-35	P211	4.4	UCP211-35
	60	69.8	241	184	70	20	25	25	138	65.1	25.4	M16	UC212	P212	6.2	UCP212
2-1/4		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-36	P212	6.2	UCP212-36
2-3/8		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-38	P212	6.2	UCP212-38
2-7/16		69.8	241	184	70	20	25	25	138	65.1	25.4	5/8	UC212-39	P212	6.2	UCP212-39
	65	76.2	265	203	70	25	29	27	150	65.1	25.4	M20	UC213	P213	7	UCP213
2-1/2		76.2	265	203	70	25	29	27	150	65.1	25.4	3/4	UC213-40	P213	7	UCP213-40
	70	79.4	266	210	72	25	31	27	156	74.6	30.2	M20	UC214	P214	7.6	UCP214

Shaft Dia		Boundary dimensions(mm)										Bolt Size	Bearing No.	Housing No.	Mass	Bearing Number
in.	mm	h	a	e	b	s1	s2	g	w	Bi	n	Bolt Size	Bearing No.	Housing No.	Kg	TDGS
2-11/16		79.4	266	210	72	25	31	27	156	74.6	30.2	3/4	UC214-43	P214	7.6	UCP214-43
2-3/4		79.4	266	210	72	25	31	27	156	74.6	30.2	3/4	UC214-44	P214	7.6	UCP214-44
	75	82.6	275	217	74	25	31	28	163	77.8	33.3	M20	UC215	P215	8.5	UCP215
2-15/16		82.6	275	217	74	25	31	28	163	77.8	33.3	3/4	UC215-47	P215	8.5	UCP215-47
3		82.6	275	217	74	25	31	28	163	77.8	33.3	3/4	UC215-48	P215	8.5	UCP215-48
