110mm Bore, Single row cylindrical roller bearing NUP2222ECML NUP2222ECP

Good Quality FAG Bearings on sale
Good Quality Deep Groove Ball Bearing on sale
Good quality . Thankyou.

—— Mr. Deven Shah

very happy with your goods.Great

—— Mr SNEHAL CHAUDHARI

I'm Online Chat Now

110mm Bore, Single row cylindrical roller bearing NUP2222ECML NUP2222ECP

110mm Bore, Single row cylindrical roller bearing NUP2222ECML NUP2222ECP supplier 110mm Bore, Single row cylindrical roller bearing NUP2222ECML NUP2222ECP supplier 110mm Bore, Single row cylindrical roller bearing NUP2222ECML NUP2222ECP supplier 110mm Bore, Single row cylindrical roller bearing NUP2222ECML NUP2222ECP supplier

Large Image :  110mm Bore, Single row cylindrical roller bearing NUP2222ECML NUP2222ECP

Product Details:

Place of Origin:China
Brand Name:TDGS,HDBB,,NACHI,NTN,KOYO or OEM
Certification:ISO9001:2000
Model Number:NUP2222ECML NUP2222ECP

Payment & Shipping Terms:

Minimum Order Quantity:0-99 UNIT
Price:-
Packaging Details:PAPER BOX,CARTON.WOODEN CASE
Delivery Time:7days
Payment Terms:TT OR L/C
Supply Ability:1000000/year
Detailed Product Description



110mm Bore, Single row cylindrical roller bearing NUP2222ECML NUP2222ECP

Model:NUP 2222 ECML, NUP 2222 ECP

Dimension:110x200x53mm

Basic Dynamic Load Rating:440kN

Basic Static Load Rating:520kN

Fatigue Load Limit:61kN

Limiting Speed:4000r/min

Mass:7kg

Material of Rings and Balls: Chrome steel,Carbon steel, Stainless steel

Cage Material: Brass,Steel,Nylon

Cage Type:NUP 2222 ECML, NUP 2222 ECP

Package: Usually made by plastic tube+anti-rust paper+box+carton

Terms of Payment: T/T(30% deposit in advance), Irrevocable L/C at sight, Western Union

Delivery Time: 3-25 days, according to the order quantity

Application of Cylindrical Roller Bearing: motor, locomotives, autos,spindle,equipment, internal combustion engine, generator, gas turbines, reducer, rolling mill, vibrating screen and lifting transportation machinery, etc.

Single row: NU, NJ, NUP, N, NCF and NJG designs

Double row: NNU, NN and  NNF designs



Quick Detail:

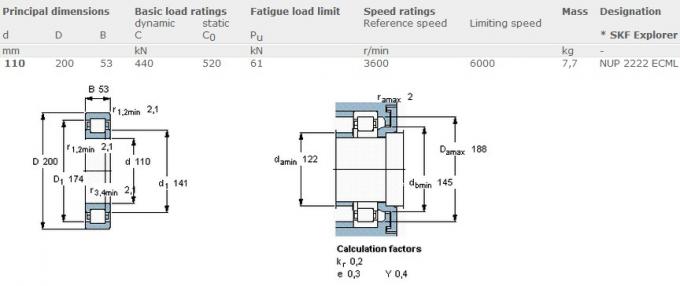

Bearing Model NUP 2222 ECML
Type Cylindrical Roller Bearing
Bore Size (mm) 110
Outside Diameter (mm) 200
Width (mm) 53
Mass (kg) 7.7
Material Chrome Steel, Carbon steel, Stainless steel
Cage Material Nylon. Steel. Brass
Number of Row Single Row
Precision Rating P5. P6
Basic Dynamic Load Rating (Cr) 440 kN
Basic Static Load Rating (Cor) 520 kN
Limiting Speed 6000 r/min

110mm Bore, Single row cylindrical roller bearing NUP2222ECML NUP2222ECP

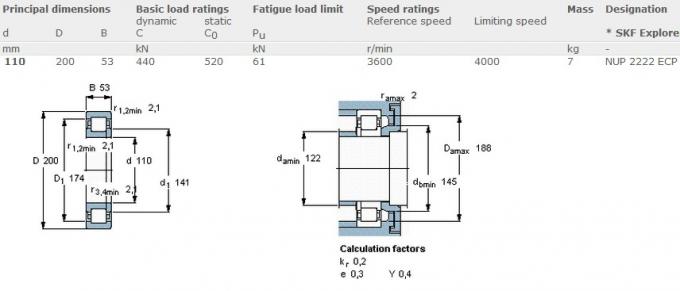

Bearing Model NUP 2222 ECP
Type Cylindrical Roller Bearing
Bore Size (mm) 110
Outside Diameter (mm) 200
Width (mm) 53
Mass (kg) 7
Material Chrome Steel, Carbon steel, Stainless steel
Cage Material Nylon. Steel. Brass
Number of Row Single Row
Precision Rating P5. P6
Basic Dynamic Load Rating (Cr) 440 kN
Basic Static Load Rating (Cor) 520 kN
Limiting Speed 4000 r/min

110mm Bore, Single row cylindrical roller bearing NUP2222ECML NUP2222ECP

With central point of bearing as ball center, the spherically formed outer ring raceway can make self-aligninment. Their rolling elements linearly come into contact with the raceways of inner ring and outer ring. The Spherical roller bearings  divided into: cylindrical bore, tapered bore

 can take great radial load, suitable for heavy machinery used in mining, metallurgical, paper-making and construction etc

NUP



Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) Bearing Number
d D B rs min rs1 min Cr Cor Grease Oil (Approx.) TDGS
25 47 12 0.6 0.3 15.1 14.1 16,000 19,000 0.092 NUP1005
30 55 13 1 0.6 19.7 19.6 14,000 16,000 0.13 NUP1006
35 62 14 1 0.6 22.6 23.2 12,000 15,000 0.179 NUP1007
40 68 15 1 0.6 27.3 29.0 11,000 13,000 0.22 NUP1008
45 75 16 1 0.6 31.0 34.0 9,900 12,000 0.28 NUP1009
50 80 16 1 0.6 32.0 36.0 8,900 11,000 0.295 NUP1010
55 90 18 1.1 1 37.5 44.0 8,200 9,700 0.442 NUP1011
60 95 18 1.1 1 40.0 48.5 7,500 8,800 0.474 NUP1012
65 100 18 1.1 1 41.0 51.0 7,000 8,200 0.485 NUP1013
70 110 20 1.1 1 58.5 70.5 6,500 7,600 0.699 NUP1014
75 115 20 1.1 1 60.0 74.5 6,100 7,100 0.738 NUP1015
80 125 22 1.1 1 72.5 90.5 5,700 6,700 0.98 NUP1016
85 130 22 1.1 1 74.5 95.5 5,400 6,300 1.03 NUP1017
90 140 24 1.5 1.1 88.0 114 5,100 5,900 1.33 NUP1018
95 145 24 1.5 1.1 90.5 120 4,800 5,600 1.4 NUP1019
100 150 24 1.5 1.1 93.0 126 4,600 5,400 1.45 NUP1020
105 160 26 2 1.1 105 142 4,300 5,100 1.84 NUP1021
110 170 28 2 1.1 131 174 4,100 4,800 2.33 NUP1022
120 180 28 2 1.1 139 191 3,800 4,400 2.44 NUP1024
130 200 33 2 1.1 172 238 3,400 4,000 3.69 NUP1026




Boundary dimensions(mm) Basic load ratings(kN) Limiting speeds(rpm) Mass(Kg) Bearing Number
d D B rs min rs1 min Cr Cor Grease Oil (Approx.) TDGS
150 270 45 3 3 345 435 2,500 2,900 9.92 NUP230
150 270 45 3 3 450 595 2,200 2,600 11 NUP230E
130 230 40 3 3 365 455 2,600 3,100 6.9 NUP226E
140 250 42 3 3 310 400 2,700 3,100 7.88 NUP228
140 250 42 3 3 395 515 2,400 2,800 8.73 NUP228E
120 215 40 2.1 2.1 260 320 3,200 3,700 5.57 NUP224
120 215 40 2.1 2.1 335 420 2,900 3,400 5.97 NUP224E
130 230 40 3 3 270 340 2,900 3,400 6.3 NUP226
105 190 36 2.1 2.1 201 241 3,600 4,300 3.95 NUP221
110 200 38 2.1 2.1 240 290 3,400 4,000 4.63 NUP222
110 200 38 2.1 2.1 293 365 3,100 3,700 4.27 NUP222E
95 170 32 2.1 2.1 220 265 3,600 4,300 3.02 NUP219E
100 180 34 2.1 2.1 183 217 3,800 4,500 3.33 NUP220
100 180 34 2.1 2.1 249 305 3,500 4,100 3.66 NUP220E
90 160 30 2 2 152 178 4,300 5,000 2.3 NUP218
90 160 30 2 2 182 217 3,900 4,600 2.44 NUP218E
95 170 32 2.1 2.1 166 195 4,000 4,700 2.78 NUP219
80 140 26 2 2 139 167 4,400 5,100 1.67 NUP216E
85 150 28 2 2 120 140 4,500 5,300 1.87 NUP217
85 150 28 2 2 167 199 4,100 4,800 2.11 NUP217E
