Cylindrical Roller Bearing, NU 1022 M, NU 1022 ML

Cylindrical Roller Bearing, NU 1022 M, NU 1022 ML supplier Cylindrical Roller Bearing, NU 1022 M, NU 1022 ML supplier Cylindrical Roller Bearing, NU 1022 M, NU 1022 ML supplier Cylindrical Roller Bearing, NU 1022 M, NU 1022 ML supplier

Large Image :  Cylindrical Roller Bearing, NU 1022 M, NU 1022 ML

Product Details:

Place of Origin:CHINA
Brand Name:TDGS,HDBB,,NACHI,NTN,KOYO or OEM
Certification:ISO9001:2000
Model Number:NU 1022 M - NU 1022 ML

Payment & Shipping Terms:

Minimum Order Quantity:1-99 UNIT
Price:-
Packaging Details:PAPER BOX,CARTON.WOODEN CASE
Delivery Time:3-25 days, according to the order quantity
Payment Terms:TT OR L/C
Supply Ability:1000000
Detailed Product Description



NU 1022 M, NU 1022 ML,Cylindrical Roller Bearings, Single Row



Model:NU 1022 M, NU 1022 ML

Dimension:110x170x28mm

Bore Size:110mm

Outside Diameter:170mm

Width:28mm

Basic Dynamic Load Rating:128kN

Basic Static Load Rating:166kN

Material of Rings and Balls: Chrome steel,Carbon steel, Stainless steel

Cage Material: Brass,Steel,Nylon

Package: Usually made by plastic tube+anti-rust paper+box+carton

Terms of Payment: T/T(30% deposit in advance), Irrevocable L/C at sight, Western Union

Delivery Time: 3-25 days, according to the order quantity

Application : motor, locomotives, autos,spindle,equipment, internal combustion engine, generator, gas turbines, reducer, rolling mill, vibrating screen and lifting transportation machinery, etc.

Single row: NU, NJ, NUP, N, NCF and NJG designs

Double row: NNU, NN and  NNF designs



Quick description:



Bearing Model NU 1022 M
Type Cylindrical Roller Bearing
Bore Size (mm) 110
Outside Diameter (mm) 170
Width (mm) 28
Mass (kg) 2.3
Material Chrome Steel, Carbon steel, Stainless steel
Cage Material Brass
Number of Row Single Row
Precision Rating P5. P6
Basic Dynamic Load Rating (Cr) 128 kN
Basic Static Load Rating (Cor) 166 kN
Limiting Speed 4500 r/min

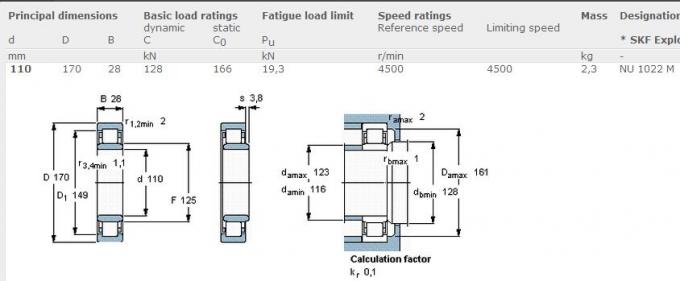

Bearing Model NU 1022 M
Type Cylindrical Roller Bearing
Bore Size (mm) 110
Outside Diameter (mm) 170
Width (mm) 28
Mass (kg) 2.3
Material Chrome Steel, Carbon steel, Stainless steel
Cage Material Brass
Number of Row Single Row
Precision Rating P5. P6
Basic Dynamic Load Rating (Cr) 128 kN
Basic Static Load Rating (Cor) 166 kN
Limiting Speed 7500 r/min

Cylindrical Roller Bearing, NU 1022 M, NU 1022 ML

Cylindrical Roller Bearing, NU 1022 M, NU 1022 ML

NNU, NN double row, Z1, Z2, Z3 Vibration and noise level Cylindrical Roller Bearing


Cylindrical Roller Bearing, NU/NJ1022M - NU/NJ1048M, NU/NJ220M - NU/NJ248M



Cylindrical roller bearings mainly bear radial load.it is linear contact between roller and raceway.Rolling ring wall with small friction, Cylindrical roller bearing is  suitable for high-speed rotation due to the small friction between  rolling element and ring.According ring with ribs orwithout ribs , Cylindrical roller bearing can be divided into NU, NJ, NUP, N, NF and other single row bearings, and NNU, NN and other double row bearings. The application of cylindrical roller bearing is Medium-sized motors, rolling stock, machine tool spindles, internal combustion engines, generators, gas turbines, gear boxes, rolling mill, vibrating screen, and lifting transportation machinery.

Cylindrical roller bearing
NJ, NU, NUPseries
NU/NJ1022M-- NU/NJ1048M
NU/NJ220M-- NU/NJ248M
NU/NJ317M-- NU/NJ334M
NU/NJ414-- NU/NJ428M
NU/NJ2220M-- NU/NJ2236M
NU/NJ2314M-- NU/NJ2334M
NU/NJ724M-- NU/NJ 728M
