110mm Bore Cylindrical roller bearing NJ 422 / NJ 422 M Single Row

Good Quality FAG Bearings on sale
Good Quality Deep Groove Ball Bearing on sale
Good quality . Thankyou.

—— Mr. Deven Shah

very happy with your goods.Great

—— Mr SNEHAL CHAUDHARI

I'm Online Chat Now

110mm Bore Cylindrical roller bearing NJ 422 / NJ 422 M Single Row

110mm Bore Cylindrical roller bearing NJ 422 / NJ 422 M Single Row supplier 110mm Bore Cylindrical roller bearing NJ 422 / NJ 422 M Single Row supplier 110mm Bore Cylindrical roller bearing NJ 422 / NJ 422 M Single Row supplier 110mm Bore Cylindrical roller bearing NJ 422 / NJ 422 M Single Row supplier

Large Image :  110mm Bore Cylindrical roller bearing NJ 422 / NJ 422 M Single Row

Product Details:

Place of Origin:CHINA
Brand Name:TDGS,HDBB,,NACHI,NTN,KOYO or OEM
Certification:ISO9001:2000
Model Number:NJ 422 / NJ 422 M

Payment & Shipping Terms:

Minimum Order Quantity:1-99 UNIT
Price:-
Packaging Details:PAPER BOX,CARTON.WOODEN CASE
Delivery Time:7days
Payment Terms:T/T(30% deposit in advance), Irrevocable L/C at sight, Western Union
Supply Ability:500 Piece/Pieces per Day
Detailed Product Description



Detailed Product Description





Single Row Cylindrical Roller Bearing NJ 422 / NJ 422 M With 110mm Bore





Model:NJ 422, NJ 422 M

Dimension:110x280x65mm

Bore Size:110mm

Outside Diameter:280mm

Width:65mm



Basic Dynamic Load Rating:532kN

Basic Static Load Rating:585kN

Material of Rings and Balls: Chrome steel,Carbon steel, Stainless steel

Cage Material: Brass,Steel,Nylon



Package: Usually made by plastic tube+anti-rust paper+box+carton

Terms of Payment: T/T(30% deposit in advance), Irrevocable L/C at sight, Western Union

Delivery Time: 3-25 days, according to the order quantity



Application : motor, locomotives, autos,spindle,equipment, internal combustion engine, generator, gas turbines, reducer, rolling mill, vibrating screen and lifting transportation machinery, etc.

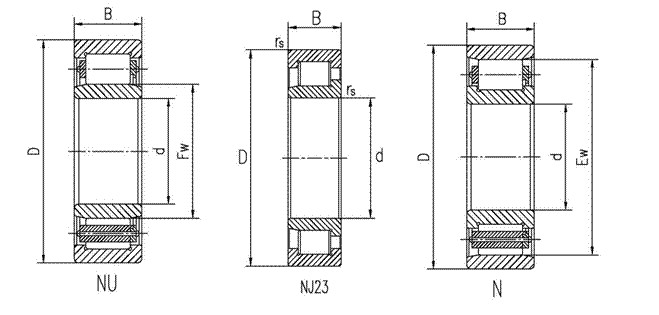

Single row: NU, NJ, NUP, N, NCF and NJG designs

Double row: NNU, NN and  NNF designs



Quick description:

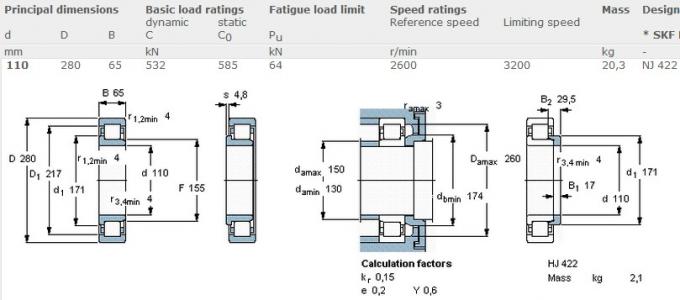

Bearing Model NJ 422
Type Cylindrical Roller Bearing
Bore Size (mm) 110
Outside Diameter (mm) 280
Width (mm) 65
Mass (kg) 20.3
Material Chrome Steel, Carbon steel, Stainless steel
Cage Material Steel
Number of Row Single Row
Precision Rating P5. P6
Basic Dynamic Load Rating (Cr) 532 kN
Basic Static Load Rating (Cor) 585 kN
Limiting Speed 3200 r/min

110mm Bore Cylindrical roller bearing NJ 422 / NJ 422 M Single Row

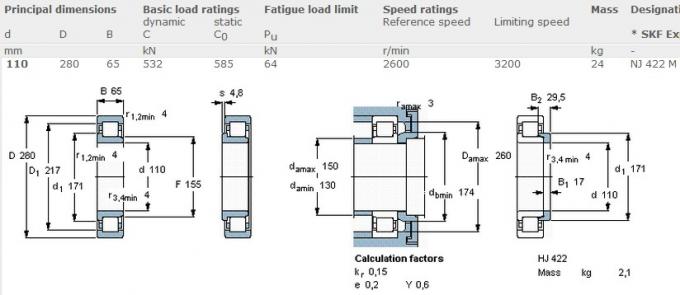

Bearing Model NJ 422 M
Type Cylindrical Roller Bearing
Bore Size (mm) 110
Outside Diameter (mm) 280
Width (mm) 65
Mass (kg) 24
Material Chrome Steel, Carbon steel, Stainless steel
Cage Material Brass
Number of Row Single Row
Precision Rating P5. P6
Basic Dynamic Load Rating (Cr) 532 kN
Basic Static Load Rating (Cor) 585 kN
Limiting Speed 3200 r/min

110mm Bore Cylindrical roller bearing NJ 422 / NJ 422 M Single Row


110mm Bore Cylindrical roller bearing NJ 422 / NJ 422 M Single Row



Feature:

    Cylindrical rollers have linear contact with the raceway, and the bearings can carry heavier radial load. Applications are found in situations characterized by heavy load and shock load and also high rotation speed. The N type and NU type bearings can be movable along the shaft. liner bearing, line bearing, linear bearing, They can adapt to the position changes between the shaft and housing caused by the thermal expansion or the mounting error and are most suitable for free end shafts. NJ and NF types can accept certain axial load in one direction, and NH and NUP types can accept certain axial load in two directions. Inner ring and outer ring can be separable, and be they are convenient to mount and dismount. FC, FCD and FCDP types can carry comparatively heavy radial load and are mainly applied for mill rolls. liner bearings, line bearings, linear bearings, steel mill bearing, cylindrical roller bearing, heavy load bearing, double row bearing, single row cylindrical roller bering, double row cylindrical roller bearing, four row cylindrical roller bering, Large Cylindrical roller bearings, Large diameter cylindrical roller bearings, Custom Cylindrical roller bearings, Large size cylindrical roller bearings.



Applications:

    These bearings are mostly found in middle-sized and large-sized motors, electricity generators, internal combustion engines, gas turbines, machine tool spindles, deceleration devices, unloading and lifting machines and other industrial machines.
