Single Row Cylindrical Roller Bearing With 180mm Bore NU 2236 ECM , NU 2236 ECMA

Good Quality FAG Bearings on sale
Good Quality Deep Groove Ball Bearing on sale
Good quality . Thankyou.

—— Mr. Deven Shah

very happy with your goods.Great

—— Mr SNEHAL CHAUDHARI

I'm Online Chat Now

Single Row Cylindrical Roller Bearing With 180mm Bore NU 2236 ECM , NU 2236 ECMA

Single Row Cylindrical Roller Bearing  With 180mm Bore NU 2236 ECM , NU 2236 ECMA supplier Single Row Cylindrical Roller Bearing  With 180mm Bore NU 2236 ECM , NU 2236 ECMA supplier Single Row Cylindrical Roller Bearing  With 180mm Bore NU 2236 ECM , NU 2236 ECMA supplier Single Row Cylindrical Roller Bearing  With 180mm Bore NU 2236 ECM , NU 2236 ECMA supplier

Large Image :  Single Row Cylindrical Roller Bearing With 180mm Bore NU 2236 ECM , NU 2236 ECMA

Product Details:

Place of Origin:CHINA
Brand Name:TDGS,HDBB,,NACHI,NTN,KOYO or OEM
Certification:ISO9001:2000
Model Number:NU2236ECM, NU2236ECMA

Payment & Shipping Terms:

Minimum Order Quantity:1-99 UNIT
Price:-
Packaging Details:PAPER BOX,CARTON.WOODEN CASE
Delivery Time:3-25 days, according to the order quantity
Payment Terms:TT OR L/C
Supply Ability:1000000
Detailed Product Description



Detailed Product Description




Single Row Cylindrical Roller Bearing  With 180mm Bore NU 2236 ECM, NU 2236 ECMA





Model:NU 2236 ECM, NU 2236 ECMA

Dimension:180x320x86mm

Bore Size:180mm

Outside Diameter:320mm

Width:86mm



Basic Dynamic Load Rating:1100kN

Basic Static Load Rating:1430kN

Material of Rings and Balls: Chrome steel,Carbon steel, Stainless steel

Cage Material: Brass,Steel,Nylon



Package: Usually made by plastic tube+anti-rust paper+box+carton

Terms of Payment: T/T(30% deposit in advance), Irrevocable L/C at sight, Western Union

Delivery Time: 3-25 days, according to the order quantity



Application : motor, locomotives, autos,spindle,equipment, internal combustion engine, generator, gas turbines, reducer, rolling mill, vibrating screen and lifting transportation machinery, etc.



Single row: NU, NJ, NUP, N, NCF and NJG designs

Double row: NNU, NN and  NNF designs



Quick description:





Bearing Model NU 2236 ECM
Type Cylindrical Roller Bearing
Bore Size (mm) 180
Outside Diameter (mm) 320
Width (mm) 86
Mass (kg) 31.5
Material Chrome Steel, Carbon steel, Stainless steel
Cage Material Brass
Number of Row Single Row
Precision Rating P5. P6
Basic Dynamic Load Rating (Cr) 1100 kN
Basic Static Load Rating (Cor) 1430 kN
Limiting Speed 2400 r/min



Single Row Cylindrical Roller Bearing  With 180mm Bore NU 2236 ECM , NU 2236 ECMA



Bearing Model NU 2236 ECMA
Type Cylindrical Roller Bearing
Bore Size (mm) 180
Outside Diameter (mm) 320
Width (mm) 86
Mass (kg) 31.5
Material Chrome Steel, Carbon steel, Stainless steel
Cage Material Brass
Number of Row Single Row
Precision Rating P5. P6
Basic Dynamic Load Rating (Cr) 1100 kN
Basic Static Load Rating (Cor) 1430 kN
Limiting Speed 3200 r/min



Single Row Cylindrical Roller Bearing  With 180mm Bore NU 2236 ECM , NU 2236 ECMA



Feature:

    Cylindrical rollers have linear contact with the raceway, and the bearings can carry heavier radial load. Applications are found in situations characterized by heavy load and shock load and also high rotation speed. The N type and NU type bearings can be movable along the shaft. liner bearing, line bearing, linear bearing, They can adapt to the position changes between the shaft and housing caused by the thermal expansion or the mounting error and are most suitable for free end shafts. NJ and NF types can accept certain axial load in one direction, and NH and NUP types can accept certain axial load in two directions. Inner ring and outer ring can be separable, and be they are convenient to mount and dismount. FC, FCD and FCDP types can carry comparatively heavy radial load and are mainly applied for mill rolls. liner bearings, line bearings, linear bearings, steel mill bearing, cylindrical roller bearing, heavy load bearing, double row bearing, single row cylindrical roller bering, double row cylindrical roller bearing, four row cylindrical roller bering, Large Cylindrical roller bearings, Large diameter cylindrical roller bearings, Custom Cylindrical roller bearings, Large size cylindrical roller bearings.



Applications:

    These bearings are mostly found in middle-sized and large-sized motors, electricity generators, internal combustion engines, gas turbines, machine tool spindles, deceleration devices, unloading and lifting machines and other industrial machines.

Single Row Cylindrical Roller Bearing  With 180mm Bore NU 2236 ECM , NU 2236 ECMA

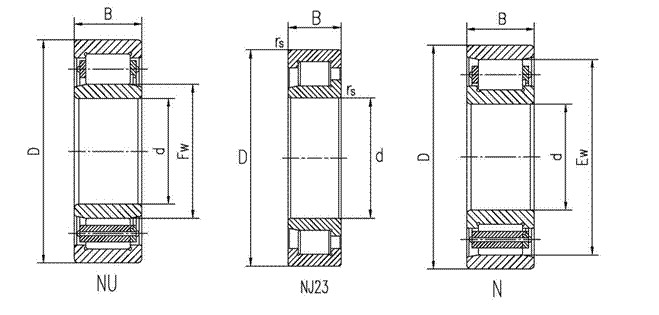

Model Boundary dimensions (mm) Basic load ratings (KN) Limiting speed (r/min) Weight (KG) separate thrust collar code
d D B B1 Rsmin R1smin Fw(Ew) dyc_Cr stc_Cor Old_spec Designations
NJ2220 100 180 46 10 2.1 2 120 260 385 3200 3800 5.6 HJ2220
NU2220 100 180 46 10 2.1 2 120 260 385 3200 3800 5.6 HJ2220
NJ2240  200 360 98 14 4 4 244 905 1600 1500 1800 45.5 HJ2240
NU2334 170 360 120 16 4 4 220 1160 1858 1400 1700 61.1 -
NJ2334 170 360 120 14 4 4 220 1160 1858 1400 1700 62.5 -
