Product Details:
|
| Product: | 24160CCW33C3 24160CA/W33 24160MBW33 | Size: | 300*500*200mm |
|---|---|---|---|
| Material: | GCr15SiMn GCR15 | Lubrication: | Oil Grease |
| Cage: | Steel Cage, Cooper Cage | Type: | Spherical Roller |
| Basic Dynamic Load Rating: | 3 876 KN | Basic Static Load Rating: | 6 300 KN |
| Reference Speed: | 560 R/min | Weight: | 160 Kgs |
| High Light: | 24160 CA/W33 Spherical Roller Bearing,160 Kgs Spherical Roller Bearing,GCr15SiMn Big Roller Bearing |
||

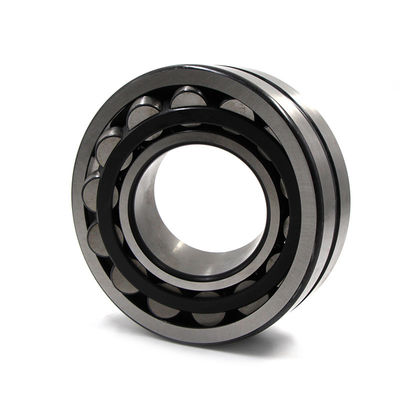

1 . Spherical Roller Bearing
Spherical roller bearing has two columns of roller. It mainly bears radial load and also can bear axial load in any direction but can not bear pure axial load. Spherical roller bearing has high radial load capacity, suitable for working under heavy load or vibration load. The outer ring raceway of this kind of bearing is spherical shape so that it has good self aligning performance and can compensate the alignment error.
2. Specification of 24160 Self-aliging roller bearing
| 241 | 60 | CC | W33 | |||
|---|---|---|---|---|---|---|
| Medium, Wide | 300mm - Bore Size | Flangeless Inner Ring, Guide Ring Centred on the Inner Ring, Two Stamped Steel Cages | Cylindrical Bore | Steel Cage | Normal Radial Internal Clearance | Annular Groove and Three Lubrication Holes in the Outer Ring |
INSIDE DIAMETER (MM) : 300MM
OUTSIDE DIAMETER (MM) : 500MM
WIDTH (MM) : 200MM
CAGE TYPE : STEEL
SEALS OR SHIELDS : OPEN TYPE
CLEARANCE : STANDARD
DYNAMIC LOAD RATING (KN) : 3750
STATIC LOAD RATING (KN) : 6300
FATIGUE LOAD RATING (KN) : 465
REFERENCE SPEED RATING (R/MIN) : 560
LIMITING SPEED RATING (R/MIN) : 800
| Series | Model Number | d(mm) | D(mm) | B(mm) | Series | Model Number | d(mm) | D(mm) | B(mm) |
| 21300 series | 21307 | 35 | 72 | 23 | 22200 series | 22205 | 25 | 52 | 18 |
| 21308 | 40 | 90 | 23 | 22206 | 30 | 62 | 20 | ||
| 21309 | 45 | 100 | 25 | 22207 | 35 | 72 | 23 | ||
| 21310 | 50 | 110 | 27 | 22208 | 40 | 80 | 23 | ||
| 21311 | 55 | 120 | 29 | 22209 | 45 | 85 | 23 | ||
| ... | ... | ... | .. | ... | ... | ... | ... | ||
| 23000series | 23020 | 100 | 150 | 37 | 24000 series | 24015 | 75 | 115 | 40 |
| 23022 | 110 | 170 | 45 | 24018 | 90 | 140 | 50 | ||
| 23024 | 120 | 180 | 46 | 24020 | 100 | 150 | 50 | ||
| 23028 | 140 | 210 | 53 | 24024 | 120 | 180 | 60 | ||
| 23030 | 150 | 225 | 56 | 24026 | 130 | 200 | 69 | ||
| ... | ... | ... | ... | ... | ... | ... | ... | ||
| 22300 series | 22307 | 35 | 80 | 31 | 24100 series | 24120 | 100 | 165 | 65 |
| 22308 | 40 | 90 | 33 | 24122 | 110 | 180 | 69 | ||
| 22309 | 45 | 100 | 36 | 24124 | 120 | 200 | 80 | ||
| 22310 | 50 | 110 | 40 | 24126 | 130 | 210 | 80 | ||
| 22311 | 55 | 120 | 43 | 24128 | 140 | 225 | 85 | ||
| ... | ... | ... | ... | ... | ... | ... |
3 . Production Process of Roller bearing / Ball bearing
4 . Packaging
1 ) Commercial Taper Roller Bearings packaging: 1pc/plastic bag + color box + carton + pallet
2 ) Industrial Taper Roller Bearings packaging: a):plastic tube + carton + pallet; b). plastic bag +kraft paper + carton + pallet
3 ) According to the requirement of customer of Taper Roller Bearings
5 . Delivery
1 ) Less than 45 KGS, we will send by express. ( Door to Door, Convenient )
2 ) Between 45 - 200 KGS, we will send by air transport. ( Fastest and safest, but expensive )
3 ) More than 200 KGS, we will send by sea. ( Cheapest, but long time )
6 . Main Application
The papemaking machinery, speed reducer, railway vehicle axle, rolling mill gear box bearing, rolling mill roller, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial deceleration machine, vertical set-contained spherical roller bearing.
