Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232

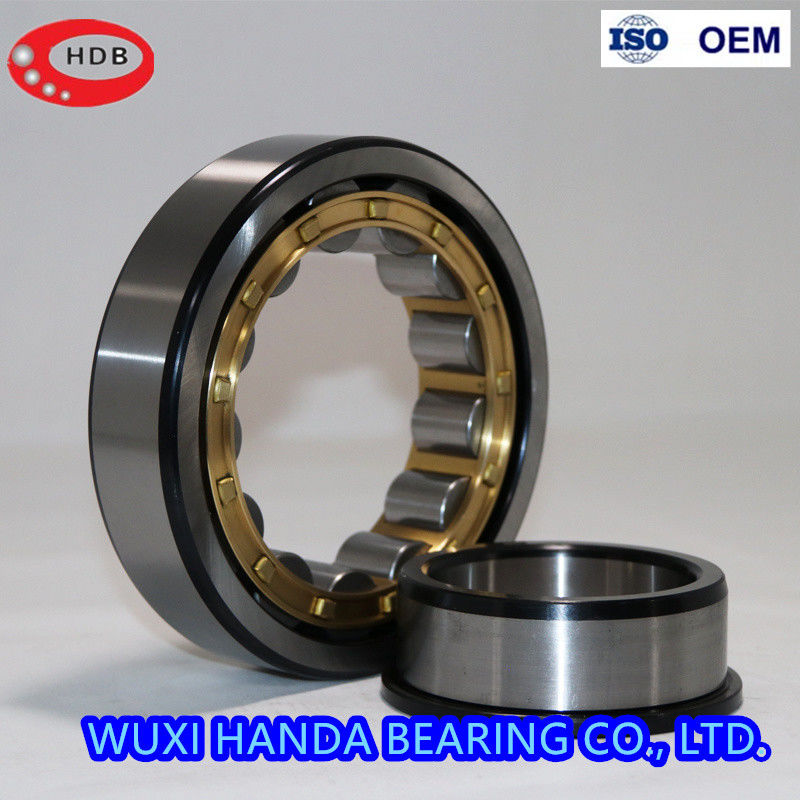

Large Image : Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232

Product Details:

Place of Origin:	CHINA
Brand Name:	HDBB
Certification:	ISO9001 & GB307
Model Number:	NJ2226 NJ2228 NJ2230 NJ2232

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pcs
Packaging Details:	Industrial Packing Single Color Box OEM
Delivery Time:	5-7 Works days
Payment Terms:	T/T , Western Union, RMB
Supply Ability:	80,000 Pcs per Month

Contact Now

Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232

Description

Model:	NJ2226 NJ2228 NJ2230 NJ2232	Material:	Chrome Steel
Structure:	Cylindrical Roller Bearing	Type:	Single Row
Cage:	ECP ECM EM ECJ	Series:	N, NJ, NUP, NU, NF
HS Code:	8482500090	Term:	FOB, CIF, CNF Price
High Light:	Chrome Steel Cylindrical Roller Bearing , NJ2226 Cylindrical Roller Bearing

NJ Series Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232 Size 160x290x80 Weight 3.36 Kgs Ex Stock

1 . Cylindrical roller bearings have below types:

N type :
The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.

NU type :

The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.

NJ type :

The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction.

NF type :

The outer ring has one integral flange and the inner ring two integral flanges.

NUP type :

The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.

RN type :

No outer ring and the inner ring two integral flanges.

NN type :

NN type bearing without ribs on outer ring,there is a wall in the midel of between both sides of inner ring. It can make shaft

relative bearing between the axial displacement generated in both directions.

Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232 0

Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232 1

2 . Parts of NJ Series Cylindrical Roller Bearing :

NJ series
Model	d. mm	D. mm	H. mm	W.kgs
NJ1024EM	120	180	28	3.8
NJ1026EM	130	200	33	3.96
NJ1028EM	140	210	33	4.8
NJ1030EM	150	225	35	4.8
NJ1032EM	160	240	38	6
NJ1034EM	170	260	42	8.5
NJ1036EM	180	280	46	11
NJ1038EM	190	290	46	11.8
NJ1040EM	200	310	51	15
NJ1044EM	220	340	56	19.6
NJ1048EM	240	360	56	20.8
NJ1052EM	260	400	65	30
NJ1056EM	280	420	65	34.2
NJ1060EM	300	460	74	45
NJ1064EM	320	480	74	47.8
NJ1068EM	340	520	82	68
NJ1072EM	360	540	82	67.7
NJ1080EM	400	600	90	95.5
NJ220EM	100	180	34	3.81
NJ222EM	110	220	38	5.11
NJ224EM	120	215	40	6.48
NJ226EM	130	230	40	7.46
NJ228EM	140	250	42	9.62
NJ230EM	150	270	45	12.1
NJ232EM	160	290	48	14.5
NJ234EM	170	310	52	19.3
NJ236EM	180	320	52	19.8
NJ238EM	190	340	55	22.9
NJ240EM	200	360	58	27.7
NJ244EM	220	400	65	38.9
NJ248EM	240	440	72	53
NJ252EM	260	480	80	68.2
NJ256EM	280	500	80	70.3
NJ260EM	300	540	85	91
NJ2216EM	80	140	33	2.36
NJ2218EM	90	160	40	3.73
NJ2219EM	95	170	43	5
NJ2220EM	100	180	46	5.99
NJ2222EM	110	200	53	7.8
NJ2224EM	120	215	58	9.55
NJ2226EM	130	230	64	11.9
NJ2228EM	140	250	68	15
NJ2230EM	150	270	73	18.1
NJ2232EM	160	290	80	24.7
NJ2234EM	170	310	86	31
NJ2236EM	180	320	86	31
NJ2238EM	190	340	92	40
NJ2240EM	200	360	98	44
NJ2244EM	220	400	108	65
NJ2312EM	60	130	46	2.81
NJ2313EM	65	140	48	3.36

3. Application of NJ Series Roller Bearing :

screen and lifting and transportation machinery crankshaft,

Automobile and tractor gearbox, Internal combustion engine,

Generator, Gas turbine, Reducer, Rolling mill, Vibrating Large motors,

Machine tool spindles, Engine front and rear support shafts,

Train and bus box shaft support, Diesel engine

Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232 4

Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232 5 marilyn@handabearing.com

Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232 6 marilynkftj2006

Chrome Steel Cylindrical Roller Bearing NJ2226 NJ2228 NJ2230 NJ2232 7 008617312783296
