FAG Angular Contact Ball Bearing 7306CTYNSULP4 7306 BECBP Centrifuge Bearing

FAG Angular Contact Ball Bearing 7306CTYNSULP4 7306 BECBP Centrifuge Bearing
FAG Angular Contact Ball Bearing 7306CTYNSULP4 7306 BECBP Centrifuge Bearing FAG Angular Contact Ball Bearing 7306CTYNSULP4 7306 BECBP Centrifuge Bearing

Large Image :  FAG Angular Contact Ball Bearing 7306CTYNSULP4 7306 BECBP Centrifuge Bearing

Product Details:
Place of Origin: GERMANY
Brand Name: FAG
Certification: ISO9001 & GB307
Model Number: 7306 BMPUA 7306CTYNSULP4 7306BECBP
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Packaging Details: Single Color Box/Industrial Packing
Delivery Time: 5-7 Works days
Payment Terms: T/T , Western Union, RMB
Supply Ability: 800,000 Pcs per Month
Contact Now

FAG Angular Contact Ball Bearing 7306CTYNSULP4 7306 BECBP Centrifuge Bearing

Description
Material: 7306 BMPUA 7306CTYNSULP4 7306BECBP Product: Angular Contact Ball Bearing
Structure: Angular Contact Type: Ball
No. Of Row: Single Row Vibration: Z1V1 Z2V2 Z3V3 Z4V4
Size: 30 X 72 X 19mm Weight: 0.35 Kg
High Light:

FAG Angular Contact Ball Bearing

,

7306 BECBP Angular Contact Ball Bearing

,

FAG Centrifuge Bearing

7306 BMPUA FAG Angular Contact Ball Bearing 7306CTYNSULP4 7306BECBP Centrifuge Bearing



Angular contact ball bearings :
Single row angular contact ball bearings can only bear the axial load in one direction, and will cause additional axial force when bearing radial load. And can only limit the axial displacement of the shaft or housing in one direction. Angular contact ball bearings have a contact angle of 40 degrees, so they can withstand large axial loads. Angular contact ball bearings are of non-separable design, with shoulders at different heights on both sides of the inner and outer rings. To increase the bearing's load capacity, one of the shoulders is machined lower, allowing the bearing to fit more balls.
Angular contact ball bearing accuracy classes include dimensional tolerances and rotational accuracy. The precision is expressed as P0 (normal), P6 (P6X), P5, P4, P2 from low to high. In addition, European and American brands also use P3, P7, and P9 to indicate the accuracy level. P3 is equivalent to P6 level of ISO and JIS standards, P7 is equivalent to P4 level, and P9 is equivalent to P2 level.
Angular contact ball bearings Model List :
Model No.
Size(d*D*B) mm
Weight(KG)
Model No.
Size(d*D*B)mm
Weight(KG)
724C
4*13*5
0.005
7224C
120*215*40
5.6
725C
5*16*5
0.008
7226C
130*230*40
7.3
726C
6*19*6
0.01
7228C
140*250*42
8.6
727C
7*22*7
0.013
7230C
150*270*45
12.1
728C
8*24*8
0.017
7232C
160*290*48
14.5
729C
9*26*8
0.02
7234AC
170*310*52
17.2
7200C
10*30*9
0.031
7236AC
180*320*52
17.9
7201C
12*32*10
0.036
7238AC
190*340*55
20
7202C
15*35*11
0.04
7240AC
200*360*58
25.2
7203C
17*40*12
0.063
7244AC
220*400*65
36.1
7204C
20*47*14
0.102
7248B
240*440*72
50.9
7205C
25*52*15
0.127
7303C
17*47*14
0.12
7206C
30*62*16
0.233
7304C
20*52*15
0.15
7207C
35*72*17
0.3
7305C
25*62*17
0.23
7208C
40*80*18
0.37
7306C
30*72*19
0.35
7209C
45*85*19
0.5
7307C
35*80*21
0.47
7210C
50*90*20
0.46
7308C
40*90*23
0.66
7211C
55*100*21
0.6
7309C
45*100*25
0.888
7212C
60*110*22
0.8
7310C
50*110*27
1.08
7213C
65*120*23
1.02
7311C
55*120*29
1.44
7214C
70*125*24
1.1
7312C
60*130*31
1.71
7215C
75*130*25
1.29
7313C
65*140*33
2.23
7216C
80*140*26
1.48
7314C
70*150*35
2.67
7217C
85*150*28
1.84
7315C
75*160*37
3.1
7218C
90*160*30
2.24
7316C
80*170*39
3.97
7219C
95*170*32
3.2
7317C
85*180*41
4.84
7220C
100*180*34
3.27
7318C
90*190*43
5
7221C
105*190*36
3.95
7319C
95*200*45
5.7
7222C
110*200*38
4.81
7320C
100*215*47
8.5

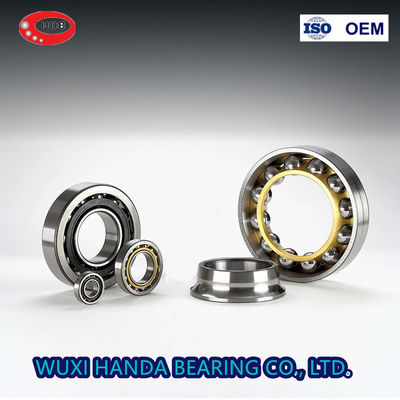

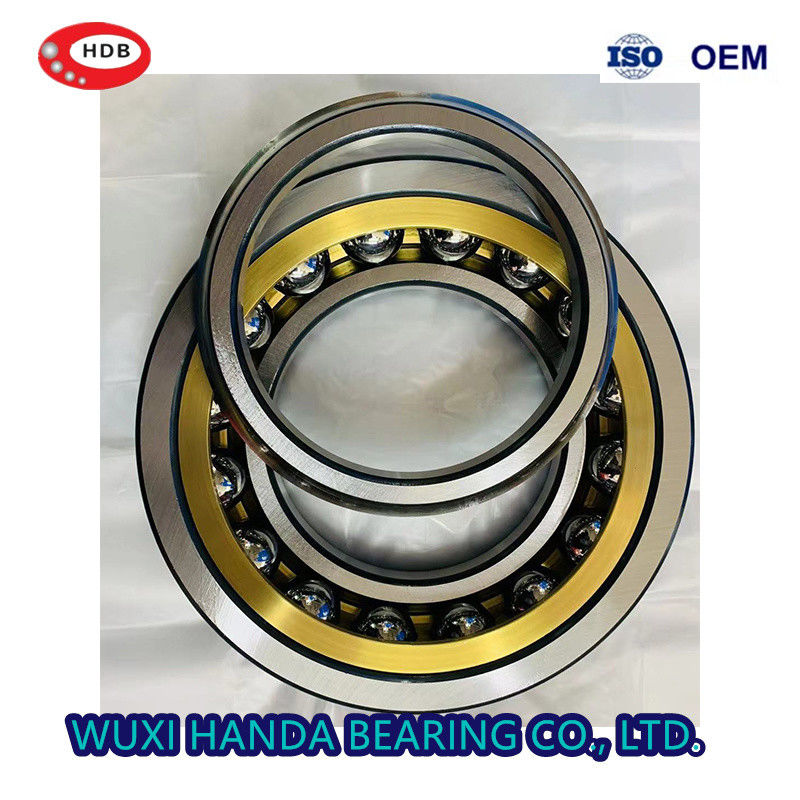

Angular contact ball bearings Photo :

FAG Angular Contact Ball Bearing 7306CTYNSULP4 7306 BECBP Centrifuge Bearing 0

FAG Angular Contact Ball Bearing 7306CTYNSULP4 7306 BECBP Centrifuge Bearing 1

Tag:

High Speed Angular Contact Bearing,

Double Row Angular Contact Bearing,

4 Point Contact Ball Bearing
