Insert Pillow Block Bearing Heavy Duty NSK Mounted UCP 308 Bearing

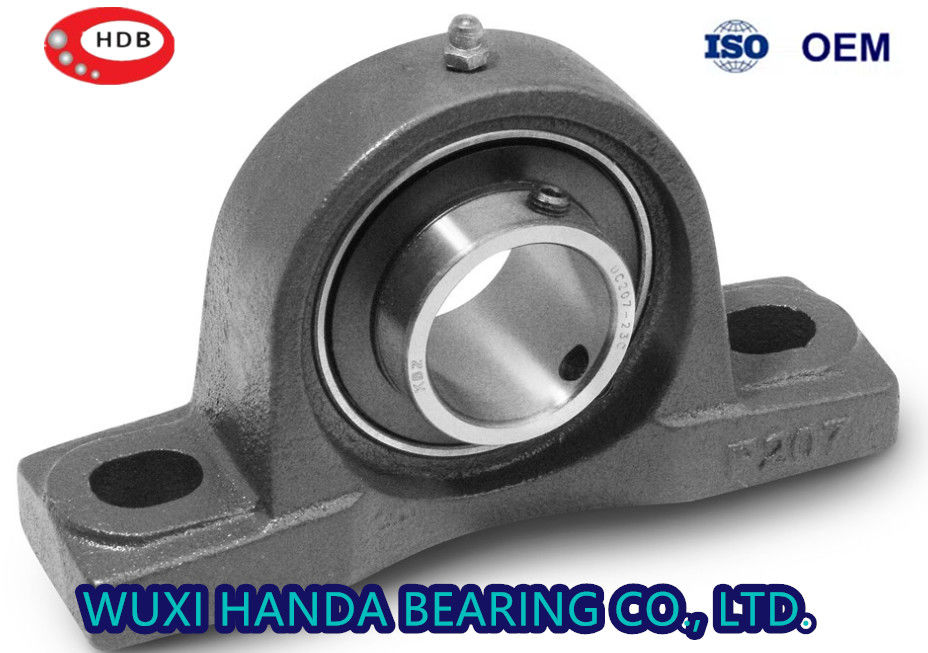

Large Image : Insert Pillow Block Bearing Heavy Duty NSK Mounted UCP 308 Bearing

Product Details:

Place of Origin:	CHINA JAPAN
Brand Name:	HDBB NSK
Certification:	ISO9001 & GB307
Model Number:	UCP308

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pcs
Packaging Details:	Industrial Packing Single Color Box OEM
Delivery Time:	5-7 Works days
Payment Terms:	T/T , Western Union, RMB
Supply Ability:	80,000 Pcs per Month

Contact Now

Insert Pillow Block Bearing Heavy Duty NSK Mounted UCP 308 Bearing

Description

Part No.:	UCP308	Product Name:	Insert Pillow Block Bearing
Bearing Name:	Insert Ball Bearings	Bearing Material:	Chrome Steel
Insert Bearing::	UC308	Housing:	P308
Housing Material:	Cast Iron	Bore Type:	Cylindrical
Unit Weight:	3.65 Kgs
High Light:	Insert Pillow Block Bearing , NSK Pillow Block Bearing , Heavy Duty UCP 308 Bearing

UCP308 Heavy Duty UCP 308 Insert Pillow Block Bearing NSK Mounted Bearings Agricultural Machinery Bearings

Insert ball bearing unit is consisted of a double sealed, single row bearing and one of housings(cast iron housing, stamping steel housing, stainless steel housing, engineering plastic housing, nodular cast iron housing, nickel plating housing, zinc alloy housing, etc). They are widely used inagricultural machinery, construction machinery, textile machinery, foodstuff machinery and conveying devices, etc. Including ucp bearing ,ucf bearing, ucfl bearing ,ucpa bearing and so on.

Type : Pillow Block Mounted Bearing

Bolt Size : 40 × 220 × 116 × 52

Bearing No : UC308

Housing No : P308

Bearing Unit Types :

UCP... 200 300 Series

UCT... 200 300 Series

UCF... 200 300 Series

UCPA ... 200 300 Series

UCFL ... 200 300 Series

Bearing Unit No.	Shaftr Dia d (mm)	Dimensions (mm)										Bolt Used (mm)	Bearing No.	Housing No.	Weight (kg)
Bearing Unit No.	Shaftr Dia d (mm)	h	a	e	b	S2	S1	g	w	Bi	n	Bolt Used (mm)	Bearing No.	Housing No.	Weight (kg)
UCP305	25	45	175	132	45	20	17	16	85	38	15	M14	UCP305	P 305	1.6
UCP306	30	50	180	140	50	20	17	18	95	43	17	M14	UCP306	P 306	2.1
UCP307	35	56	210	160	56	25	17	20	106	48	19	M14	UCP307	P 307	2.8
UCP308	40	60	220	170	60	27	17	22	116	52	19	M14	UCP308	P 308	3.65
UCP309	45	67	245	190	67	30	20	24	129	57	22	M16	UCP309	P 309	4.7
UCP310	50	75	275	212	75	35	20	27	143	61	22	M16	UCP310	P 310	6.4
UCP311	55	80	310	236	80	38	20	30	154	66	25	M16	UCP311	P 311	7.8
UCP312	60	85	330	250	85	38	25	32	165	71	26	M20	UCP312	P 312	9.4
UCP313	65	90	340	260	90	38	25	35	176	75	30	M20	UCP313	P 313	10.3
UCP314	70	95	360	280	90	40	27	35	187	78	33	M22	UCP314	P 314	11.9
UCP315	75	100	380	290	100	40	27	35	198	82	32	M22	UCP315	P 315	14.5
UCP316	80	106	400	300	110	40	27	40	210	86	34	M22	UCP316	P 316	17.1
UCP317	85	112	420	320	110	45	33	40	220	96	40	M27	UCP317	P 317	19.2
UCP318	90	118	430	330	110	45	33	45	235	96	40	M27	UCP318	P 318	21.1
UCP319	95	125	470	360	120	50	36	45	250	103	41	M30	UCP319	P 319	28.2
UCP320	100	140	490	380	120	50	36	50	275	108	42	M30	UCP320	P 320	34.8
UCP322	110	150	520	400	140	55	40	50	296	117	46	M33	UCP322	P 322	43.2
UCP324	120	160	570	450	140	55	40	50	316	126	51	M33	UCP324	P 324	54
UCP326	130	180	600	480	140	55	40	50	355	135	54	M33	UCP326	P 326	72.1
UCP328	140	200	620	500	140	55	40	60	393	145	59

For more PILLOW BLOCK BEARINGS size, pls contact us freely.
