Product Details:
|
| Material: | Chrome Steel | Seal: | No |
|---|---|---|---|
| Structure: | Tapered | Type: | Roller |
| Vibration: | V1 V2 V3 V4 | Precision: | P0(ABEC1), P6(ABEC3) ,P5(ABEC5,)P4(ABEC7), P2(ABEC9) |
| High Light: | 32006 Taper Roller Bearing,30x55x17mm Taper Roller Bearing,32009 Bearing |
||

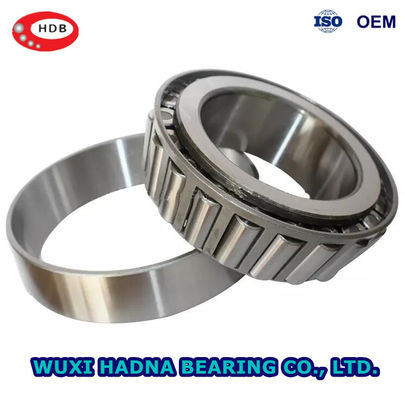

TIMKEN bearing 32006 weight 0.172kgs 32009 32010 taper roller bearing in stock Size 30x55x17mm
1. About Tapered Roller Bearings
Single row tapered roller bearing is the most basic and widely used tapered bearing. It consists of the cone assembly and the cup. It is usually fitted as one of an opposing pair. During equipment assembly, single row bearings can be set to the required clearance (endplay) ro preload condition to optimize performance.
2. Description
1) Quality: High speed, Low noise and Long life.
2) Products Can be customized according to your demand.
3) Application: Mining, Wind Electricity, Equipment, Machine Tool, Auto, Motor, Pump Train etc
3. Taper Roller Bearings Feature
1) Competitive price with prompt delivery.
2) Manufactory in Shandong Province.
3) Durability with long life.
4) Smooth, silent and low vibration.
5) OEM is availbale.
6) Extensive range of bearing types, price, quality.
7) Professional staffs with the best services.
| Item Name | Chrome Steel Tapered Roller Bearing Bearing 32006 |
| Material | Chrome Steel/Gcr15/Carbon Steel |
| Application | Auto, tractor, machine tool, electric machine, water pump, agricultural machinery, textile machinery and so on |
| Clearance | C0,C2,C3,C4,C5 |
| Bore Size | 30mm Outer Diameter : 55mm |
| Cage Type | Brass;steel plate,nylon,aluminium alloy etc. |
| Bearing Package | Pallet,wooden case,commercial packaging or as customers' requirement. |
| Delivery Time | 3-5 working days according the quantity |
| Advantage | low friction,Minimum lubrication,Wear resistant,Running in not required,Requires Little attention,Dimensions relatively small,No scraping required to fit shaft,Easy replacement |
|
Service
|
1) Courier tracking number 2) Documents you need 3) Customer satisfy survey 4) Any other reasonable requirements as per requested |
| Taper roller bearings are for industrial use and auto parts. The taper roller angles allow the bearing to hand a combination of radial and thrust loads. The steeper he cup angle, the greater the ability of bearing to handle thrust loads. We can provide taper roller bearings as your requirements | |
Related Taper Roller Bearing Catalogue :

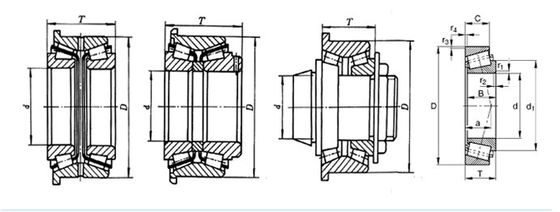

| Bearing No | Boundary dimensions (mm) | Weight (kg) | ||
| d | D | T | ||
| 32004 Bearing | 20 | 42 | 15 | 0.096 |
| 32005 Bearing | 25 | 47 | 15 | 0.115 |
| 32006 Bearing | 30 | 55 | 17 | 0.172 |
| 32007 Bearing | 35 | 62 | 18 | 0.227 |
| 32008 Bearing | 40 | 68 | 19 | 0.27 |
| 32009 Bearing | 45 | 75 | 20 | 0.329 |
| 32010 Bearing | 50 | 80 | 20 | 0.365 |
| 32011 Bearing | 55 | 90 | 23 | 0.55 |
| 32012 Bearing | 60 | 95 | 23 | 0.586 |
| 32013 Bearing | 65 | 100 | 23 | 0.627 |
| 32014 Bearing | 70 | 110 | 25 | 0.842 |
| 32015 Bearing | 75 | 115 | 25 | 0.887 |
| 32016 Bearing | 80 | 125 | 29 | 1.27 |
| 32017 Bearing | 85 | 130 | 29 | 1.33 |
| 32018 Bearing | 90 | 140 | 32 | 1.73 |
| 32019 Bearing | 95 | 145 | 32 | 1.8 |
| 32020 Bearing | 100 | 150 | 32 | 1.87 |
| 32021 Bearing | 105 | 160 | 35 | 2.38 |
| 32022 Bearing | 110 | 170 | 38 | 3.05 |
| 32024 Bearing | 120 | 180 | 38 | 3.2 |
Packing :
Single plastic, single paper box, Carton, Wooden Pallet.
