Product Details:
|
| Bearing No.: | 37425/37625 | Series: | 37000 |
|---|---|---|---|
| Type: | Imperial Bearing | Cage Material: | Stamped Steel |
| Size: | ID 107.95mm OD 158.75mm | Unit Weight: | 1.4 Kgs |
| Vibration: | Z1V1/Z2V2/Z3V3 | HS Code: | 8482200000 |
| High Light: | 37425/37625 Taper Roller Bearing,Truck Taper Roller Bearing,TIMKEN Inch Roller Bearing |
||
This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.
Single row tapered roller bearings
Double row tapered roller bearings
Four row tapered roller bearings

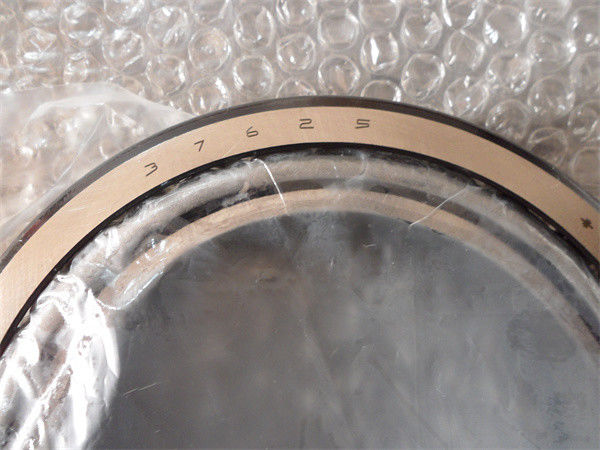

Part Number 37425 - 37625, Tapered Roller Bearings - TS (Tapered Single) Imperial Roller Bearing
More Models Taper Roller Bearing :
| Specification | Boundary dimensions(mm) | Mass(kg) | ||
| d | D | B | ||
| LM300849/LM300811 | 41.000 | 68.000 | 17.500 | 0.2420 |
| 33275/33462 | 69.850 | 117.475 | 30.162 | 1.2720 |
| 33281/33462 | 71.438 | 117.475 | 30.162 | 1.2310 |
| 33 8 89/33821 | 50.800 | 95.250 | 27.783 | 0.8680 |
| 33287/33462 | 73.025 | 117.475 | 30.162 | 1.1880 |
| 368A/362A | 50.800 | 88.900 | 20.638 | 0.5040 |
| 368/362 | 50.800 | 90.000 | 20.000 | 0.5620 |
| 3780/3720 | 50.800 | 93.254 | 30.162 | 0.8560 |
| 3782/3720 | 44.450 | 93.264 | 30.162 | 0.9700 |
| 387A/382A | 57.150 | 96.838 | 21.000 | 0.5990 |
| 39585/39520 | 63.500 | 112.712 | 30.162 | 1.2580 |
| 2580/2523 | 31.750 | 69.850 | 23.812 | 0.4510 |
| 28985/28921 | 60.325 | 100.00 | 25.400 | 0.7700 |
| 47686/47620 | 82.550 | 133.350 | 33.338 | 1.7570 |
| 47687/47620 | 82.550 | 133.350 | 33.338 | 1.7370 |
| 387A/362S | 57.150 | 96.838 | 25.400 | 0.6690 |
| 387A/382 | 57.150 | 98.425 | 21.000 | 0.6460 |
| 3982/3920 | 63.500 | 112.712 | 30.162 | 1.2430 |
| 3984/3920 | 66.675 | 112.712 | 30.162 | 1.1660 |
| 462/453X | 57.150 | 104.775 | 30.162 | 1.0700 |
| L44643/L44610 | 25.400 | 50.292 | 14.224 | 0.1290 |
| L4469/L44610 | 26.988 | 50.292 | 14.224 | 0.1200 |
| L45449/L45410 | 29.000 | 50.292 | 14.224 | 0.1150 |
| LM48548/LM48510 | 34.925 | 65.088 | 18.034 | 0.2590 |
| LM501349/LM501210 | 41.275 | 73.431 | 19.558 | 0.3340 |
| LM501349/LM501314 | 41.275 | 73.431 | 21.430 | 0.3550 |
Packing Show :
1 . Neutral Packing: White Plastic bag / paper / tube + Outer Carton + Wooden Pallet;
2 . HDBB Brand packing : plastic bag + box + HDBB outer carton + Wooden pallet.
3 . same as customers's request
OEM Work well :
Bearings Application:
FAQ :
1 . Q : Are you trading company or manufacturer ?
A : We are professional slewing bearing manufacturer with 20 years' experience.
2 . Q : How long is your delivery time ?
A : Generally it is 4-5 days if the goods are in stock. or it is 25-45 days if the goods are not in
stock, and it depends on quantity.
3 . Q : Do you provide samples ? is it free or extra ?
A : Yes, we could offer the sample, it is free but customer afford the courier cost.
4 . Q : What is your terms of payment ?
A : Payment<=5000USD, 100% in advance. Payment>5000USD, 30% T/T in advance, balance before shipment.
5 . Q : Can you provide special customization according to the working conditions ?
A : Sure, we can design and produce the bearings for different working conditions. your drawings can work here.
6 . Q : How about your guarantee ?
A : We provide lifelong after-sales technical service.
