Product Details:
|
| Material: | Chrome Steel /GCr15 | Service: | OEM Customized Services |
|---|---|---|---|
| Certificate: | CO, ISO Etc | Type: | Roller, Taper Roller Bearing |
| Precision Rating: | P0 P6 P5 P4 P2 | Vibration: | V1 V2 V3 V4 |
| High Light: | SKF Taper Roller Bearing,P5 Taper Roller Bearing,32017 Bearing |
||
32013 32017 SKF taper roller bearing Size 65x100x23mm Weight 0.627 kgs High Precision P0 P6 P5 P4 P2
Tapered roller bearings are commonly used for moderate speed, heavy duty applications where durability is required. Common real world applications are in agriculture, construction and mining equipment, axle systems, gear box, engine motors and reducers, propeller shaft, railroad axle-box, differential, wind turbines, etc.
Axle systems (Automotive Front and Rear Axles)
Agricultural machinery
Construction equipment
Engineering machinery
Wind turbines
| Item Name | Chrome Steel Tapered Roller Bearing Bearing 32013 |
| Material | Chrome Steel/Gcr15/Carbon Steel |
| Application | Auto, tractor, machine tool, electric machine, water pump, agricultural machinery, textile machinery and so on |
| Clearance | C0,C2,C3,C4,C5 |
| Bore Size | 65mm Outer Diameter : 100mm |
| Cage Type | Brass;steel plate,nylon,aluminium alloy etc. |
| Bearing Package | Pallet,wooden case,commercial packaging or as customers' requirement. |
| Delivery Time | 3-5 working days according the quantity |
| Advantage | low friction,Minimum lubrication,Wear resistant,Running in not required,Requires Little attention,Dimensions relatively small,No scraping required to fit shaft,Easy replacement |
|
Service
|
1) Courier tracking number 2) Documents you need 3) Customer satisfy survey 4) Any other reasonable requirements as per requested |
| Taper roller bearings are for industrial use and auto parts. The taper roller angles allow the bearing to hand a combination of radial and thrust loads. The steeper he cup angle, the greater the ability of bearing to handle thrust loads. We can provide taper roller bearings as your requirements | |
Bearing Types :
Related Taper Roller Bearing Catalogue :
| Bearing No | Boundary dimensions (mm) | Weight (kg) | ||
| d | D | T | ||
| 32004 Bearing | 20 | 42 | 15 | 0.096 |
| 32005 Bearing | 25 | 47 | 15 | 0.115 |
| 32006 Bearing | 30 | 55 | 17 | 0.172 |
| 32007 Bearing | 35 | 62 | 18 | 0.227 |
| 32008 Bearing | 40 | 68 | 19 | 0.27 |
| 32009 Bearing | 45 | 75 | 20 | 0.329 |
| 32010 Bearing | 50 | 80 | 20 | 0.365 |
| 32011 Bearing | 55 | 90 | 23 | 0.55 |
| 32012 Bearing | 60 | 95 | 23 | 0.586 |
| 32013 Bearing | 65 | 100 | 23 | 0.627 |
| 32014 Bearing | 70 | 110 | 25 | 0.842 |
| 32015 Bearing | 75 | 115 | 25 | 0.887 |
| 32016 Bearing | 80 | 125 | 29 | 1.27 |
| 32017 Bearing | 85 | 130 | 29 | 1.33 |
| 32018 Bearing | 90 | 140 | 32 | 1.73 |
| 32019 Bearing | 95 | 145 | 32 | 1.8 |
| 32020 Bearing | 100 | 150 | 32 | 1.87 |
| 32021 Bearing | 105 | 160 | 35 | 2.38 |
| 32022 Bearing | 110 | 170 | 38 | 3.05 |
| 32024 Bearing | 120 | 180 | 38 | 3.2 |
Packing sample:

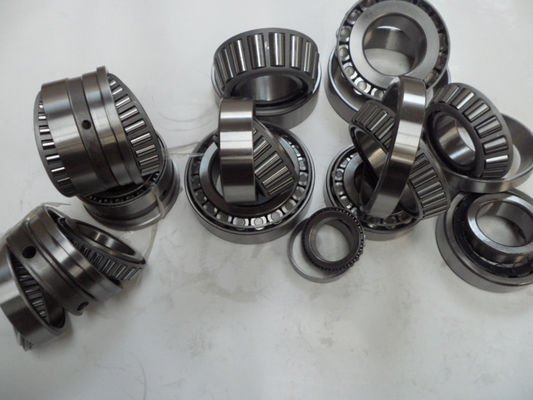

BEARING WORK SHOP AND WAREHOUSE SHOW:
Delivery Ways for Bearing :
by Express / Courier
by Air plane
by Sea
by Railway / train
