Product Details:
|
| Part Number: | 52638 / 52393 DEE | Product: | Taper Roller Bearing |
|---|---|---|---|
| Series: | 52000 | Cone Part Number: | 52393 |
| Cup Part Number: | 52638 | Weight: | 6.30 Lb 2.90 Kgs |
| Size: | 100.013 X 161.925 X 39.688mm | Cage Material: | Stamped Steel |
| High Light: | TS TIMKEN Taper Roller Bearing,Stamped Steel TIMKEN Taper Roller Bearing |
||

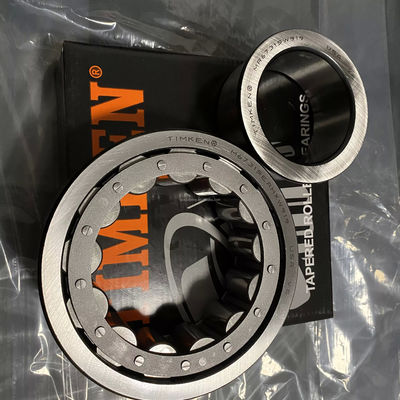

Tapered roller bearings are designed to take combined heavy radial loads and heavy thrust loads in one direction while operating at moderate speeds.
The bearings shown are single row with a cone and cup (inner and outer rings) and a pressed steel retainer.
Metric tapers feature a simplified part number for a complete bearing. Inch tapers require a part number for the cup and one for the cone.
The difference between the metric and inch tapers is only in the dimensions of measure for the bearings.
| d(mm) | D(mm) | T(mm) | Model | |
| 92.075 | 190.5 | 57.15 | HH221438 HH221410 | HH221438/HH221410 |
| 92.075 | 214.312 | 73.025 | EE213362 213843 | EE213362/213843 |
| 93.662 | 149.225 | 31.75 | 42368 42587 | 42368/42587 |
| 93.662 | 152.4 | 39.688 | 597 592A | 597/592A |
| 94.975 | 149.975 | 31.75 | 42373 42590 | 42373/42590 |
| 94.975 | 168.275 | 41.275 | 682 672 | 682/672 |
| 95 | 135 | 20 | JL819349 JL819310 | JL819349/JL819310 |
| 95 | 145 | 24 | JP10044 JP10010 | JP10044/JP10010 |
| 95 | 152.4 | 39.688 | J594X 592A | J594X/592A |
| 95 | 160 | 46 | JF9549 JF9510 | JF9549/JF9510 |
| 95 | 190 | 57 | 862 853 | 862/853 |
| 95.25 | 136.525 | 30.162 | LM119348 LM119311 | LM119348/LM119311 |
| 95.25 | 146.05 | 33.338 | 47898 47820 | 47898/47820 |
| 95.25 | 147.638 | 35.717 | 594 592XS | 594/592XS |
| 95.25 | 147.828 | 35.717 | 594 592AX | 594/592AX |
| 95.25 | 148.43 | 28.575 | 42376 42584 | 42376/42584 |
| 95.25 | 149.225 | 31.75 | 42376 42587 | 42376/42587 |
| 95.25 | 149.225 | 31.75 | 42375 42587 | 42375/42587 |
| 95.25 | 150 | 35.966 | 594 JM719113 | 594/JM719113 |
| 95.25 | 150 | 35.966 | 594AA JM719113 | 594AA/JM719113 |
| 95.25 | 150 | 35.992 | 594 593X | 594/593X |
| 95.25 | 161.925 | 36.512 | 52375 52637 | 52375/52637 |
| 95.25 | 161.925 | 39.687 | 52375 52638 | 52375/52638 |
| 95.25 | 168.275 | 41.275 | 683XA 672 | 683XA/672 |
| 95.25 | 171.45 | 47.625 | 77376 77675 | 77376/77675 |
| 95.25 | 171.45 | 50.8 | 77375 77676X | 77375/77676X |
| 95.25 | 180.975 | 47.625 | 776 772 | 776/772 |
| 95.25 | 190.5 | 57.15 | 864 854 | 864/854 |
| 95.25 | 200.025 | 61.912 | HH221440 HH221416 | HH221440/HH221416 |
| 95.25 | 200.025 | 73.025 | EH220749 EH220710 | EH220749/EH220710 |
| 96.838 | 149.225 | 31.75 | 42381 42587 | 42381/42587 |
| 98.425 | 161.925 | 36.512 | 52387 52637 | 52387/52637 |
| 98.425 | 180.975 | 47.625 | 779 772 | 779/772 |
| 98.425 | 184.15 | 63.5 | HH421246C HH421210 | HH421246C/HH421210 |
| 98.425 | 212.725 | 66.675 | HH224332 HH224310 | HH224332/HH224310 |
| 98.425 | 156.975 | 42 | HM220149 HM220110 | HM220149/HM220110 |
| 98.425 | 214.975 | 64.798 | HH224334 HH224314 | HH224334/HH224314 |
| 100 | 145 | 24 | JP10049A JP10010 | JP10049A/JP10010 |
| 100 | 145 | 24 | JP10049 JP10010A | JP10049/JP10010A |
| 100 | 145 | 24 | JP10049 JP10010 | JP10049/JP10010 |
| 100 | 150 | 32 | JLM820048 JLM820012 | JLM820048/JLM820012 |
| 100 | 160 | 36.512 | 52394X 52630X | 52394X/52630X |
| 100 | 180 | 48 | 783 773 | 783/773 |
| 100 | 180.975 | 47.625 | 783 772 | 783/772 |
| 100 | 200 | 52.761 | 98394X 98788 | 98394X/98788 |
| 100 | 215 | 66.675 | JHH224333 JHH224315 | JHH224333/JHH224315 |
| 100.012 | 161.925 | 36.512 | 52393 52637 | 52393/52637 |
| 100.012 | 161.925 | 39.687 | 52393 52638 | 52393/52638 |
| 101.6 | 134.938 | 15.875 | LL420549 LL420510 | LL420549/LL420510 |
| 101.6 | 136.525 | 21.433 | L420449 L420410 | L420449/L420410 |
| 101.6 | 146.05 | 21.433 | L521945 L521910 | L521945/L521910 |
| 101.6 | 146.05 | 25.4 | LM720648 LM720610 | LM720648/LM720610 |
| 101.6 | 152.4 | 21.433 | L521945 L521914 | L521945/L521914 |
| 101.6 | 160 | 36.512 | 52400 52630X | 52400/52630X |
| 101.6 | 161.925 | 36.512 | 52400 52637 | 52400/52637 |
| 101.6 | 161.925 | 39.687 | 52400 52638 | 52400/52638 |
| 101.6 | 171.45 | 41.275 | 687 674 | 687/674 |
| 101.6 | 177.8 | 34.925 | LM921845 LM921810 | LM921845/LM921810 |
| 101.6 | 180 | 48 | 780 773 | 780/773 |
| 101.6 | 214.312 | 55.562 | H924033 H924010 | H924033/H924010 |
| 101.6 | 214.975 | 64.798 | HH224335 HH224314 | HH224335/HH224314 |
| 101.6 | 250.825 | 76.2 | HH923649 HH923611 | HH923649/HH923611 |
| 103.188 | 171.45 | 41.275 | 689 674 | 689/674 |
| 104.775 | 142.083 | 15.875 | LL521845 LL521810 | LL521845/LL521810 |
1 . What is the MOQ of your company ?
Our company MOQ is 1pcs .
2 . Could you accept OEM and customize ?
YES, we can customize for you according to sample or drawing .
3 . Could you supply sample for free ?
Yes, we can supply sample for free , but need our customer afford freight .
4 . Does your factory have CE ?
Yes, we have ISO 9001:2008, and SASO. If you want other CE, we can do for you .
5 . Does your company factory or Trade Company ?
We have our own factory; our type is factory + trade .
6 . What is the guarantee of your bearing quality period ?
1year ! Customer need supply photos and send bearing back .
