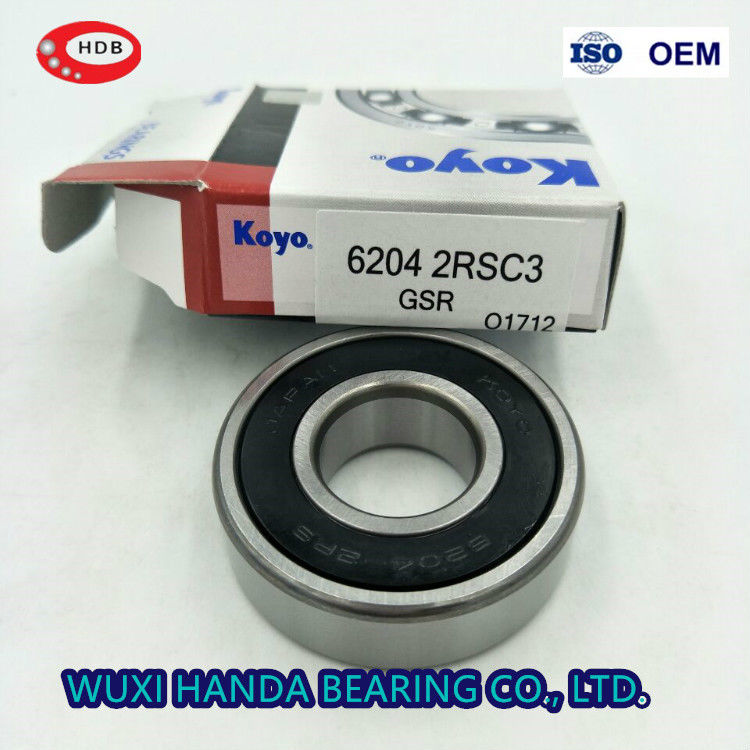

Product Details:
|
| Model: | 6204 2RSC3 6204 ZZCM | Structure: | Deep Groove |
|---|---|---|---|
| Type: | Ball | Vibration: | V1 V2 V3 V4 |
| Precision: | P0,P6,P5,P4,P2 | Material: | Chrome Steel /GCr15 |
| Seal: | ZZ 2RS Open | Sample: | Free |
| Highlight: | KOYO Deep Groove Ball Bearing,6204 ZZCM Deep Groove Ball Bearing,6204 2RSC3 Bearing |
||

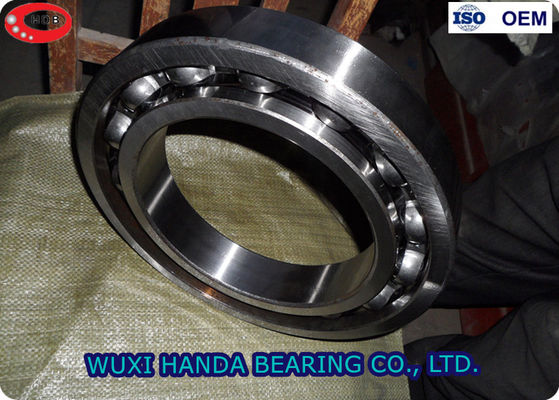

Deep Groove ball bearings are the most popular of all the ball bearing types because they are available in a wide variety of seal, shield and snap-ring arrangements.The bearing ring grooves are circular arcs made slightly larger than the radius of the ball.
Application :
They are widely used in metallurgy, power, petrochemical, construction machinery, railway, steel, papermaking, cement, mining and other industries. They are widely used of vehicles, motorcycles, home electrical appliances, electric tools and mineral machineries.
In accordance with the sizes of deep groove ball bearings can be divided into :
( 1 ) miniature bearings ---- nominal diameter size range of 26mm bearings;
( 2 ) small bearing ---- nominal diameter size range of 28-55mm bearings;
( 3 ) small and medium-sized bearings ---- nominal diameter size range of 60-115mm bearings;
( 4 ) large bearing ---- nominal diameter size range of 120-190mm bearings
( 5 ) large bearing ---- nominal diameter size range of 200-430mm bearings;
( 6 ) ---- large bearing diameter size range of 440mm or more bearings.
Related models and specifications :
6000 Series Miniature Deep Groove Ball Bearing
| N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
| mm | mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 604 | 4 | 12 | 4 | 0.2 | 0.97 | 0.36 | 36000 | 44000 | 0.0021 |
| 605 | 5 | 14 | 5 | 0.2 | 1.33 | 0.505 | 32000 | 40000 | 0.0035 |
| 606 | 6 | 17 | 6 | 0.3 | 2.19 | 0.865 | 30000 | 38000 | 0.006 |
| 607 | 7 | 19 | 6 | 0.3 | 2.24 | 0.91 | 28000 | 36000 | 0.008 |
| 608 | 8 | 22 | 7 | 0.3 | 3.35 | 1.4 | 26000 | 34000 | 0.012 |
| 609 | 9 | 24 | 7 | 0.3 | 3.4 | 1.45 | 24000 | 32000 | 0.014 |
| 6000 | 10 | 26 | 8 | 0.3 | 4.55 | 1.96 | 22000 | 30000 | 0.019 |
| 6001 | 12 | 28 | 8 | 0.3 | 5.1 | 2.39 | 19000 | 26000 | 0.021 |
| 6002 | 15 | 32 | 9 | 0.3 | 5.6 | 2.83 | 18000 | 24000 | 0.03 |
| 6003 | 17 | 35 | 10 | 0.3 | 6.8 | 3.35 | 17000 | 22000 | 0.039 |
| 6004 | 20 | 42 | 12 | 0.6 | 9.4 | 5.05 | 15000 | 19000 | 0.069 |
| 6005 | 25 | 47 | 12 | 0.6 | 10.1 | 5.85 | 14000 | 18000 | 0.08 |
| 6006 | 30 | 55 | 13 | 0.6 | 13.2 | 8.3 | 12000 | 15000 | 0.116 |
| 6007 | 35 | 62 | 14 | 1.0 | 16 | 10.3 | 10000 | 14000 | 0.115 |
| 6008 | 40 | 68 | 15 | 1.0 | 16.8 | 11.5 | 8000 | 11000 | 0.19 |
6200 Series Miniature Deep Groove Ball Bearing
| N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | ||
| mm | mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 624 | 4 | 13 | 5 | 0.2 | 1.15 | 0.4 | 36000 | 45000 | 0.0032 |
| 625 | 5 | 16 | 5 | 0.3 | 1.76 | 0.680 | 32000 | 40000 | 0.0050 |
| 626 | 6 | 19 | 6 | 0.3 | 2.34 | 0.885 | 28000 | 36000 | 0.0080 |
| 627 | 7 | 22 | 7 | 0.3 | 3.35 | 1.400 | 26000 | 34000 | 0.0130 |
| 628 | 8 | 24 | 8 | 0.3 | 4.00 | 1.590 | 24000 | 32000 | 0.0170 |
| 629 | 9 | 26 | 8 | 0.3 | 4.55 | 1.960 | 22000 | 30000 | 0.0190 |
| 6200 | 10 | 30 | 9 | 0.6 | 5.10 | 2.390 | 19000 | 26000 | 0.0300 |
| 6201 | 12 | 32 | 10 | 0.6 | 6.10 | 2.750 | 18000 | 24000 | 0.0360 |
| 6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.600 | 17000 | 22000 | 0.0460 |
| 6203 | 17 | 40 | 12 | 0.6 | 9.60 | 4.600 | 16000 | 20000 | 0.0650 |
| 6204 | 20 | 47 | 14 | 1.0 | 12.80 | 6.650 | 14000 | 18000 | 0.1070 |
| 6205 | 25 | 52 | 15 | 1.0 | 14.00 | 7.850 | 12000 | 16000 | 0.1250 |
| 6206 | 30 | 62 | 16 | 1.0 | 19.50 | 11.300 | 10000 | 13000 | 0.2010 |
6300 Series Miniature Deep Groove Ball Bearing
| Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight | |||
| mm | mm | mm | mm |
Dynamic Cr |
Static Cor |
Grease r/min |
Oil r/min |
Kg/pcs | |
| 6300 | 10 | 35 | 11 | 0.6 | 8.2 | 3.5 | 18000 | 24000 | 0.053 |
| 6301 | 12 | 37 | 12 | 1.0 | 9.7 | 4.2 | 17000 | 22000 | 0.06 |
| 6302 | 15 | 42 | 13 | 1.0 | 11.4 | 5.45 | 16000 | 20000 | 0.082 |
| 6303 | 17 | 47 | 14 | 1.0 | 13.5 | 6.55 | 15000 | 19000 | 0.115 |
| 6304 | 20 | 52 | 15 | 1.1 | 15.9 | 7.9 | 14000 | 17000 | 0.144 |
Applications:
Deep groove ball bearings can be used for transmission, instrumentation, motors, appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, engineering machinery , roller skate style , yo-yo , precision instruments, low noise motors, automobiles , motorcycles vehicles.
| Packing | 1 ) . Origin packing+pallets. |
| 2 ) . Single boxes+Outer carbon+Pallets | |
| 3 ) . Tube package+Outer carbon +Pallets | |
| 4 ) . According to your requirements | |
| Delivery | 1-3 days for sample / small trial order |
| 5-30 days for bulk order | |
| Shipping | 1 ) . For a small order, send by DHL, UPS, FEDEX, ARAMEX, or EMS. |
| 2 ) . For bulk order, send by Air shipment and Ocean shipment. | |
| 3 ) . Our shipping ports are Qingdao, Shanghai, Guangzhou and Shenzhen. |
