Product Details:
|
| Material: | Chrome Steel, Bearing Steel, Stainless Steel, AISI440C, Gcr15 | Structure: | Tapered |
|---|---|---|---|
| Precision: | P0 P5 P6 | HS CODE: | 8482200000 |
| Highlight: | 32009 32015 Bearing,Tapered 32015 Bearing |
||

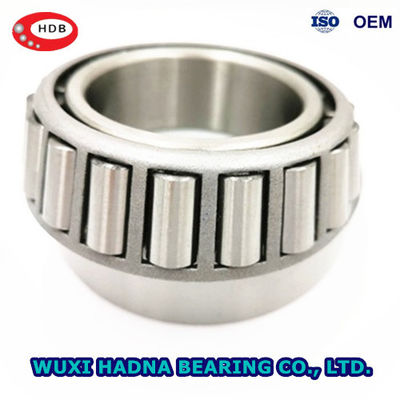

Roller bearing 32009 weight 0.329kgs 32015 tapered bearing Size 45x75x20mm China factory price
1. Information About Taper Roller Bearings
Single row tapered roller bearing is the most basic and widely used tapered bearing. It consists of the cone assembly and the cup. It is usually fitted as one of an opposing pair. During equipment assembly, single row bearings can be set to the required clearance (endplay) ro preload condition to optimize performance.
2. Description
1) Quality: High speed, Low noise and Long life.
2) Products Can be customized according to your needs.
3) Application: Mining, Wind Electricity, Equipment, Machine Tool, Auto, Motor, Pump Train etc
3. Taper Roller Bearings Feature
1) Competitive price with prompt delivery.
2) Manufactory in Shandong Province.
3) Durability with long life.
4) Smooth, silent and low vibration.
5) OEM is availbale.
6) Extensive range of bearing types, price, quality.
7) Professional staffs with the best services.
| Item Name | Chrome Steel Tapered Roller Bearing Bearing 32009 |
| Material | Chrome Steel/Gcr15/Carbon Steel |
| Application | Auto, tractor, machine tool, electric machine, water pump, agricultural machinery, textile machinery and so on |
| Clearance | C0,C2,C3,C4,C5 |
| Bore Size | 45mm Outer Diameter : 75mm |
| Cage Type | Brass;steel plate,nylon,aluminium alloy etc. |
| Bearing Package | Pallet,wooden case,commercial packaging or as customers' requirement. |
| Delivery Time | 3-5 working days according the quantity |
| Advantage | low friction,Minimum lubrication,Wear resistant,Running in not required,Requires Little attention,Dimensions relatively small,No scraping required to fit shaft,Easy replacement |
|
Service
|
1)Courier tracking number 2)Documents you need 3)Customer satisfy survey 4)Any other reasonable requirements as per requested |
| Taper roller bearings are for industrial use and auto parts. The taper roller angles allow the bearing to hand a combination of radial and thrust loads. The steeper he cup angle, the greater the ability of bearing to handle thrust loads. We can provide taper roller bearings as your requirements | |
Related Taper Roller Bearing Catalogue :
| Bearing No | Boundary dimensions (mm) | Weight (kg) | ||
| d | D | T | ||
| 32004 Bearing | 20 | 42 | 15 | 0.096 |
| 32005 Bearing | 25 | 47 | 15 | 0.115 |
| 32006 Bearing | 30 | 55 | 17 | 0.172 |
| 32007 Bearing | 35 | 62 | 18 | 0.227 |
| 32008 Bearing | 40 | 68 | 19 | 0.27 |
| 32009 Bearing | 45 | 75 | 20 | 0.329 |
| 32010 Bearing | 50 | 80 | 20 | 0.365 |
| 32011 Bearing | 55 | 90 | 23 | 0.55 |
| 32012 Bearing | 60 | 95 | 23 | 0.586 |
| 32013 Bearing | 65 | 100 | 23 | 0.627 |
| 32014 Bearing | 70 | 110 | 25 | 0.842 |
| 32015 Bearing | 75 | 115 | 25 | 0.887 |
| 32016 Bearing | 80 | 125 | 29 | 1.27 |
| 32017 Bearing | 85 | 130 | 29 | 1.33 |
| 32018 Bearing | 90 | 140 | 32 | 1.73 |
| 32019 Bearing | 95 | 145 | 32 | 1.8 |
| 32020 Bearing | 100 | 150 | 32 | 1.87 |
| 32021 Bearing | 105 | 160 | 35 | 2.38 |
| 32022 Bearing | 110 | 170 | 38 | 3.05 |
| 32024 Bearing | 120 | 180 | 38 | 3.2 |
Packing Show:
OEM Work well :
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge , but customer will pay the cost of freight. You can give us your DHL/FEDEX/TNT account no.
A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
