Product Details:
|
Models: | 24120 24122 24126 24128 24130 | Structure: | Spherical Roller |
---|---|---|---|
Row No.: | Double Row | Hardness: | HRC60-65 |
Cage: | CC CCK Steel Cage | Grade: | PO,P6,P5,P4,P2 |
Sample: | Free | Lubrication: | Grease |
Highlight: | 24126 SKF Spherical Roller Bearing,24128 Spherical Roller Bearing,24130 Bearing |

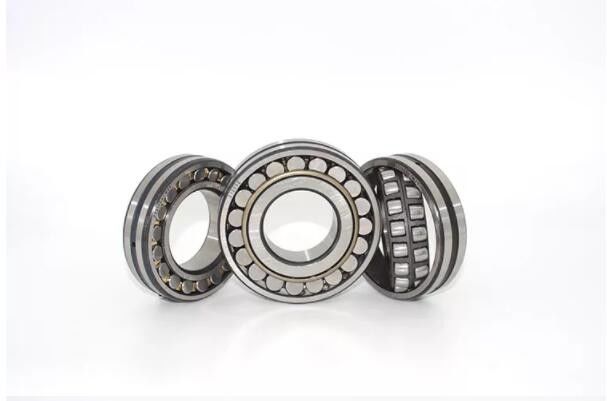

1 . Spherical Roller Bearing :
Roller bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All roller bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan.
2 . Features :
Support radial and oscillating axial loads C3 radial clearance allows thermal expansion for continuous operating temperatures up to 200 degrees C/392 degrees Tapered bore with 1:12 taper for compensating for a flexing shaft or fitting to a tapered shaft
Roller-guided brass cage evenly spaces rollers for reduced friction, vibration, and noise, Open design, circumferential groove and three lubrication holes in the outer ring allow for lubrication in place
3 . Quality & Services
Products process : Advanced producing equipment, inspection equipment and good control system to keep the product produce smoothly.
Quality guaranty : Product quality assurance period is over year 2000 miles.
Superficial finish : Carefully work in the assembly line to confirm the products in perfect appearance. Products can also be manufactured according to drawings and samples with customers requirement.
We sincerely welcome our friends to visit and negotiate business.
Meanwhile, we are looking forward to finding long-term partners..
4 . Related Spherical Roller Bearing Catalogue
Bearings NO.(K) | d/mm | D/mm | B/mm | Weight/kg |
24120 | 100 | 165 | 65 | 5.65 |
24122 | 110 | 180 | 69 | 6.9 |
24124 | 120 | 200 | 62 | 7.63 |
24126 | 130 | 210 | 80 | 11.7 |
24128 | 140 | 225 | 85 | 13.2 |
24130 | 150 | 250 | 100 | 20.4 |
24132 | 160 | 270 | 109 | 25.4 |
24134 | 170 | 280 | 109 | 27.9 |
24136 | 180 | 300 | 118 | 34.7 |
24138 | 190 | 320 | 128 | 42.9 |
24140 | 200 | 340 | 140 | 50.5 |
24144 | 220 | 370 | 150 | 68.8 |
24148 | 240 | 400 | 160 | 81.6 |
24152 | 260 | 440 | 180 | 112 |
24156 | 280 | 460 | 180 | 122 |
24160 | 300 | 500 | 200 | 159 |
24164 | 320 | 540 | 218 | 247 |
24168 | 340 | 580 | 243 | 267 |
24172 | 360 | 600 | 243 | 280 |
24176 | 380 | 620 | 243 | 288 |
24180 | 400 | 650 | 250 | 340 |
24184 | 420 | 700 | 280 | 445 |
24188 | 460 | 720 | 280 | 460 |
24192 | 460 | 760 | 300 | 539 |
24196 | 480 | 790 | 308 | 602 |
241/500 | 500 | 830 | 325 | 715 |
241/530 | 530 | 870 | 335 | 792 |
241/560 | 560 | 920 | 355 | 949 |
239/630 | 630 | 850 | 165 | 280 |
239/670 | 670 | 900 | 170 | 309 |
239/710 | 710 | 950 | 180 | 389 |
5 . Delivery Ways :
- by Sea
- by Air plane
- by Express ( DHL UPS FEDEX ARAMEX TNT EMS )
