7216 BECBP Angular Contact Ball Bearing 7214 BECBJ 7415 BCBM 7313 BEGAP 7412 BGAM

7216 BECBP Angular Contact Ball Bearing 7214 BECBJ 7415 BCBM 7313 BEGAP 7412 BGAM
7216 BECBP Angular Contact Ball Bearing 7214 BECBJ 7415 BCBM 7313 BEGAP 7412 BGAM 7216 BECBP Angular Contact Ball Bearing 7214 BECBJ 7415 BCBM 7313 BEGAP 7412 BGAM

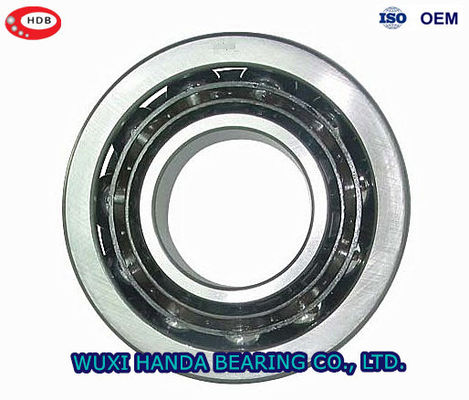

Large Image :  7216 BECBP Angular Contact Ball Bearing 7214 BECBJ 7415 BCBM 7313 BEGAP 7412 BGAM

Product Details:
Place of Origin: Sweden
Brand Name: SKF
Certification: ISO9001 & GB307
Model Number: 7216 BECBP 7214 BECBJ 7415 BCBM 7313 BEGAP 7412 BGAM
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Packaging Details: Single Color Box/Industrial Packing
Delivery Time: 5-7 Works days
Payment Terms: T/T , Western Union, RMB
Supply Ability: 800,000 Pcs per Month
Contact Now

7216 BECBP Angular Contact Ball Bearing 7214 BECBJ 7415 BCBM 7313 BEGAP 7412 BGAM

Description
Material: 7216 BECBP 7214 BECBJ 7415 BCBM 7313 BEGAP 7412 BGAM Product: Angular Contact Ball Bearing
Seal: Nylon / Steel / Brass Type: Ball
No. Of Row: Single Row Precision: P0 P6 P5 P4
Highlight:

7214 BECBJ Angular Contact Ball Bearing

,

7415 BCBM Angular Contact Ball Bearing

,

7216 BECBP

7216 BECBP Angular Contact Ball Bearing 7214 BECBJ 7415 BCBM 7313 BEGAP 7412 BGAM



Single - row angular contact ball bearing - suited to work in lower operating temperature and high speed with a heavy thrust load. Can be mounted in a duplex arrangement. The refined bore tolerance give a higher life.

Double - row angular contact ball bearing - excellent axial and radial rigidity in confined space.

Angular Contact Ball Bearings with contact angles of 15° (Symbol C) and 25° (Symbol A5) are primarily for high precision or high speed applications, and machined brass or synthetic resin cages or molded polyamidecages are used.



Angular Contact Ball Bearing Drawing :

7216 BECBP Angular Contact Ball Bearing 7214 BECBJ 7415 BCBM 7313 BEGAP 7412 BGAM 0

Four Point
Four-point contact ball bearing is a kind of separation bearing, can also be said to be a set of bearings can bear bidirectional axial load of angular contact ball bearing. The inner and outer raceways are peach-shaped cross-sections. When there is no load or pure radial load, the steel ball and the ring are in contact at four points, and the Angle of the raceway is generally α=35°


Single Row

(1) Contact Angle α=40° (Symbol B) (2) contact Angle α=25° (Symbol A5) (3) Contact Angle α=15° (Symbol C)
(4) Contact Angle α=30° (Symbol A)
Matched angular contact ball bearing
(1)DB (Back to back)
(2)DF(Face to Face)
(3)DT(Serial Configuration)



Double Row

Double row angular contact ball bearings can bear radial load and axial load acting in two directions, it can limit the axial displacement of the shaft or shell bidirectional, the contact Angle is α=30° High rigidity bearing configurations can be provided and can withstand overturning torque.
Designation Dimensions Designation Dimensions
d (mm) D (mm) B (mm) d (mm) D (mm) B (mm)
7312 BEGAY 60 130 31 7214 BECBP * 70 125 24
7312 BEGBY 60 130 31 7214 BEGAP * 70 125 24
7312 BECBP * 60 130 31 7214 BECBM * 70 125 24
7312 BECAP * 60 130 31 7214 BEGAM * 70 125 24
7312 BEGAP * 60 130 31 7314 BEP 70 150 35
7312 BEGBP * 60 130 31 7314 BECBJ 70 150 35
7312 BECBPH * 60 130 31 7314 BEGAJ 70 150 35
7312 BECBM * 60 130 31 7314 BECBY 70 150 35
7312 BECCM * 60 130 31 7314 BEGAY 70 150 35
7312 BEGAM * 60 130 31 7314 BEGBY 70 150 35
7312 BEGBM * 60 130 31 7314 BEGAF 70 150 35
7412 BM 60 150 35 7314 BECBP * 70 150 35
7412 BCBM 60 150 35 7314 BECAP * 70 150 35
7412 BGAM 60 150 35 7314 BEGAP * 70 150 35
7213 BEP 65 120 23 7314 BECBPH * 70 150 35
7213 BECBP 65 120 23 7314 BECBM * 70 150 35
7213 BEGAP 65 120 23 7314 BEGAM * 70 150 35
7213 BECBM 65 120 23 7414 BCBM 70 180 42
7213 BECBJ 65 120 23 7414 BGAM 70 180 42
7213 BEY 65 120 23 7215 BEP 75 130 25
7213 BECBY 65 120 23 7215 BECBP 75 130 25
7213 BEGAY 65 120 23 7215 BECBM 75 130 25
7213 BEGAF 65 120 23 7215 BECBJ 75 130 25
7313 BEP 65 140 33 7215 BECBY 75 130 25
7313 BECBJ 65 140 33 7215 BEGAY 75 130 25
7313 BECBY 65 140 33 7315 BEP 75 160 37
7313 BEGBY 65 140 33 7315 BECBJ 75 160 37
7313 BECBF 65 140 33 7315 BECBY 75 160 37
7313 BEGAF 65 140 33 7315 BECBP * 75 160 37
7313 BECBP * 65 140 33 7315 BEGAP * 75 160 37
7313 BEGAP * 65 140 33 7315 BECBPH * 75 160 37
7313 BEGBP * 65 140 33 7315 BECBM * 75 160 37
7313 BECBPH * 65 140 33 7315 BEGAM * 75 160 37
7313 BECBM * 65 140 33 7415 BM 75 190 45
7313 BECCM * 65 140 33 7415 BCBM 75 190 45
7313 BEGAM * 65 140 33 7415 BGAM 75 190 45
7313 BEGBM * 65 140 33 7415 BGBM 75 190 45
7413 BCBM 65 160 37 7216 BEP 80 140 26
7413 BGAM 65 160 37 7216 BECBJ 80 140 26
7413 BGBM 65 160 37 7216 BECBY 80 140 26
7214 BEP 70 125 24 7216 BEGAF 80 140 26
7214 BECBJ 70 125 24 7216 BECBP * 80 140 26
7214 BECBY 70 125 24
Installation form  :
The automatic selection of angular contact ball bearings can provide selection. Since the inner ring of the bearing extends out of the outer ring, when the outer rings of the two bearings are pressed together, the original clearance of the outer ring is eliminated, which can increase the preload of the bearing; when the two bearings are arranged in series (the wide end faces of the two bearings are in one direction) when installed , the contact angle lines of the bearing are in the same direction and parallel, so that the two bearings can share the working load in the same direction. However, when using this type of installation, in order to ensure the axial stability of the installation, two pairs of bearings arranged in series must be installed opposite to each other at both ends of the shaft.
