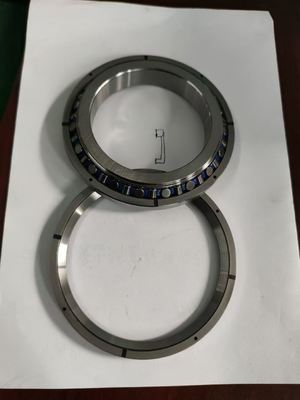

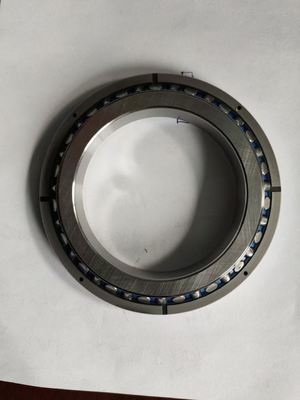

RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width

Large Image : RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width

Product Details:

Place of Origin:	CHINA
Brand Name:	HDBB
Certification:	ISO9001 CO GB
Model Number:	RB12025

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD or CNY by Negotiation
Packaging Details:	Single Color Box / Industrial Packing
Delivery Time:	5-7 Working days
Payment Terms:	T/T , Western Union, CNY, L/C at sight

Contact Now

RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width

Description

Feature:	Cross Gear	Model:	RB12025
Seal Type:	Open Or UU	Weight(kg):	2.62
Material:	Chrome Steel GCr15	Precision:	P5 P4 P2
IKO:	CRB12025	NSK:	NRXT12025
Highlight:	gear crossed roller bearings , P5 crossed roller bearings

RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width

Type of guide	Roller
Space retainer	Yes
Material	GCr15
Standard lubrication method	Grease lubrication
Oil hole	Yes
Sealing	Oil seal at both sides
Radial clearance	CC0, C0, C1
Rotation accuracy	P5/P4
Working temperature	-20℃ ~ 80℃

RB12025 crossed roller bearing features:

Integrated inner ring with separable outer ring, clearance can be adjusted.

1. Integrated inner ring with separable outer ring, clearance can be adjusted.

2. Sustain radial, axial and moment loads at the same time

3. High running accuracy supplied with normal clearance, little clearance or even under a pre-load

4. Stable rotation, spacer retainer prevents rollers from skewing, thus eliminates friction between rollers, and avoid increasing of the rotation torque

RB12025 cross roller bearing installation instructions:

Cautions: For crossed roller bearings with split outer ring, when the rigidity of the mounting parts is not sufficient, stress concentration will occur at the contact area between the rollers and raceways, and the bearing performance will be deteriorated significantly.

Therefore, it is necessary to carefully examine the rigidity of housing and the strength of fixing bolts when a large moment will be applied.

1. Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.

2. Fix the inner and outer rings in the axial direction by using fixing plates, etc.

3. Slightly loosen the fixing bolts of bearings outer ring during mounting.
