Housing Bearing UCF207 UCP211 UCP UCF 200 Or 300 Series Pillow Block Bearings Flange Bearing FYH ASAHI Ex Stock

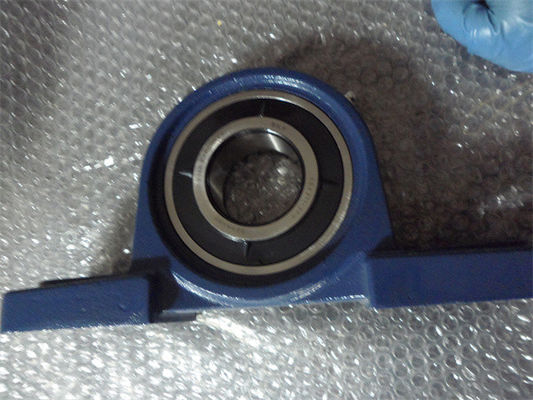

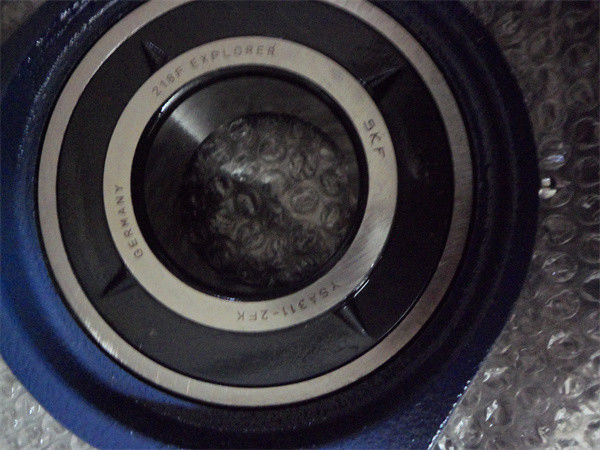

The pillow block ball bearing is composed of a single row deep groove ball bearings with seals at both sides and spherical outside surface, and a housing, suitable for simple support.

A bearing unit that combines a rolling bearing inside and a bearing housing outside.

Application :

They are widely used in varieties of mechanical equipment, especially for conveying agricultural metallurgical, textile and printing machinery, dyeing, foods, building materials, ceramics etc.

Specification List for Pillow Block Bearing / Bearing Unit :

Housing Bearing / FYH Bearing Unit UCF207 :

Bearing number : UCF207

Brand : FYH

Bore Diameter (mm) : 35

Bearing dimensions and specification in FYH catalogue:

d - 35 mm

A0 - 44,4 mm

A - 34 mm

A1 - 15 mm

B - 42,9 mm

J - 92 mm

L - 117 mm

N - 14 mm

S - 17,5 mm

Bolt (G) - M12

A2 - 19 mm

Weight - 1,5 Kg

Basic dynamic load rating (C) - 25,7 kN

Basic static load rating (C0) - 15,4 kN

Calculation factor (f0) - 13,9

Tags : FYH

Pillow block bearing / bearing unit UCP 211 :

Bearing number : UCP211

Brand : FYH

Bore Diameter (mm) : 55

Width (mm) : 55,6

Bearing dimensions and specification in FYH catalogue:

d - 55 mm

A - 60 mm

B - 55,6 mm

H - 63,5 mm

H1 - 19 mm

H2 - 125 mm

J - 171 mm

L - 219 mm

L1 - 70 mm

N - 20 mm

N1 - 22 mm

S - 22,2 mm

Bolt (G) - M16

Weight - 3,6 Kg

Basic dynamic load rating (C) - 43,4 kN

Basic static load rating (C0) - 29,4 kN

Calculation factor (f0) - 14,4

Tags : FYH
