6001 6002 6003 6004 6005 6006 6007 6008 6009 ZZC3 2RS Deep Groove Ball Bearing Used For Motorcycle

1. Description of Deep groove ball bearing

Single row radial deep groove ball bearings are rigid and non-separable in design. They incorporate deep running grooves on their inner and out rings creating a ball path that accepts axial and radial loading. The balls are separated by a cage that permits high speed operation. Their ability to accept misalignment is very limited however. In normal operation they can't handle misalignment any greater than 10 angular minutes from their centre position. Single Row Deep Groove Ball Bearings have the highest speed capacity of all rolling element bearings, and are by far the most popular bearing type in use today.

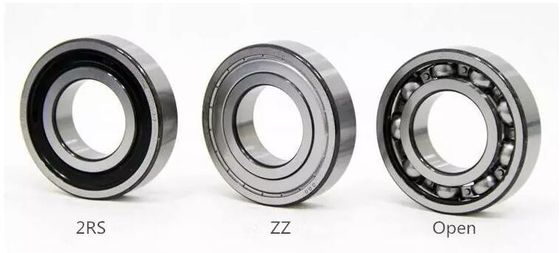

• Bearings are supplied in an open, shielded (ZZ), or sealed (2RS) design.
• Many sizes are also available with a snap ring installed on the bearing's outer ring.
• Open bearings are supplied with a light oil coating and are used in oil bath and oil misting applications.
• Sealed bearings are supplied with a contacting lip seal that excels in protecting the bearing from liquids and other foreign contaminants. The inherent design creates friction, drag, and in turn heat; factors that require consideration in high speed applications.
• Shielded bearings are provided with non-contacting metal shields that protect against larger particles entering the bearing, but do not protect against liquids. They add no friction during operation and therefore do not generate heat build-up.

2. Model List of Deep groove ball bearing

3. Application of deep groove ball bearing

Here are examples of applications in which deep groove ball bearings might be used :​

• Electric motors and generators
• Agriculture
• Material handling
• Industrial transmissions
• Food and beverage
• Industrial pumps
• Industrial fans
• Two and three wheelers
• Cars and light trucks

Brand avaliable as below
