1. Cylindrical roller bearings Description :

Cylindrical roller bearings are available in many desigins,series and sizes.The majority are single row bearings with a cage.High-capacity bearings,single and double row full complement bearings complete the standard assortment listed in this catalogue. Bearings with a cage can accommodate heavy radial loads,rapid accelerations and high speeds.
Full complement bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads at moderate speeds. High-capacity cylindrical roller bearings combine the high load carrying capacity of a full complement bearing with the high speed capability of a bearing with a cage.

2. Types of Cylindrical roller bearings :

N Series - Bearings of N design are single row cylindrical roller bearing and have two fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the N Series bearings have virtually no thrust capacity.

NU Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NU Series bearings have no virtually thrust capacity.

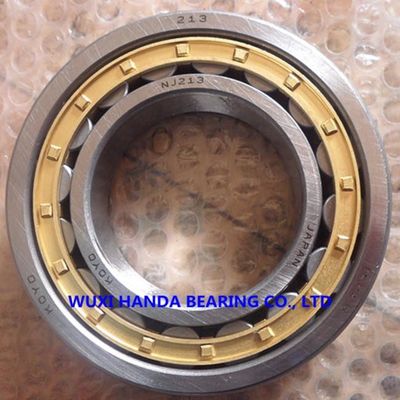

NJ Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and a fixed rib on the inner ring which can guide the shaft in a single direction (axially).

NUP Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and, on the inner ring, a fixed rib and a support washer. This way they can be used as locating bearings, guiding the shaft axially in both directions.

RNU Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and has no inner ring. Instead, it uses the shaft as the opposing raceway.

NF Series - Also able to carry incidental thrust loads, this bearing type features two integral ribs on the inner ring and a single rib on the outer ring.

NN Series - Bearings of NN design are double row cylindrical roller bearing and have three fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the NN Series bearings have no virtually thrust capacity.

NNU Series - Are double row cylindrical roller bearings and have three fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NNU Series bearings have no virtually thrust capacity.

3. Model list of Cylindrical Roller Bearing :

4. Application of Roller Bearing :

These bearings are mostly found in middle-sized and large-sized motors, electricity generators, internal combustion engines, gas turbines, machine tool spindles, deceleration devices, unloading and lifting machines and other industrial machines.

5. Package and shipping for Roller Bearing :
