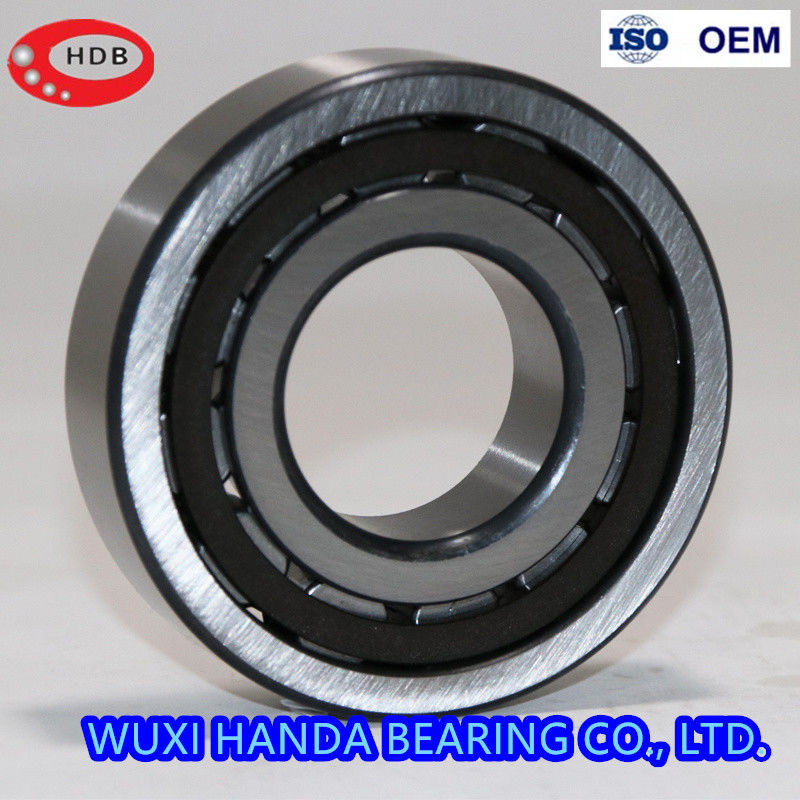

N212 N213 N214 N215 Cylindrical Roller Bearing 55x100x21mm ECP ECJ ECM

1. Cylindrical roller bearings Description :

The cylindrical rollers are in linear contact with the raceways. They have a high radial load capacity and are suitable for high speeds.There are different types designated as NU, NJ, NUP, N, NF (for single-row bearings), NNU, and NN (for double-row bearings depending on the design or absence of side ribs).

2. Types of Cylindrical roller bearings :

N Series - Bearings of N design are single row cylindrical roller bearing and have two fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the N Series bearings have virtually no thrust capacity.

NU Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NU Series bearings have no virtually thrust capacity.

NJ Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and a fixed rib on the inner ring which can guide the shaft in a single direction (axially).

NUP Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and, on the inner ring, a fixed rib and a support washer. This way they can be used as locating bearings, guiding the shaft axially in both directions.

RNU Series - Are single row cylindrical roller bearings and have two fixed ribs on the outer ring and has no inner ring. Instead, it uses the shaft as the opposing raceway.

NF Series - Also able to carry incidental thrust loads, this bearing type features two integral ribs on the inner ring and a single rib on the outer ring.

NN Series - Bearings of NN design are double row cylindrical roller bearing and have three fixed ribs on the inner ring that retain the rollers and cage and one smooth outer ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, N Series rolling bearings are used in non-locating bearing units. Also, the NN Series bearings have no virtually thrust capacity.

NNU Series - Are double row cylindrical roller bearings and have three fixed ribs on the outer ring and one smooth inner ring. This design allows an axial displacement in certain limits, of the shaft in relation to the housing. Therefore, NU Series rolling bearings are used in non-locating bearing units. Also, the NNU Series bearings have no virtually thrust capacity.

3. Model list of Cylindrical Roller Bearing :

4. Application of Roller Bearing :

Large motors, Machine tool spindles, Engine front and rear support shafts, Train and bus box shaft support, Diesel engine
crankshaft, Automobile and tractor gearbox, Internal combustion engine, Generator, Gas turbine, Reducer, Rolling mill, Vibrating screen and lifting and transportation machinery



5. Package and shipping for Roller Bearing :
