Product Details:
|
| Model: | HK1816 BK1816 | Type: | Needle Roller Bearing |
|---|---|---|---|
| Size: | 18 X 24 X 16mm | Weight: | 0.018 Kgs |
| Inner Ring IR Series: | IR 15x18x16.5 | Inner Ring LR Series: | LR 15x18x16.5 |
| Precision: | P0 | Row No.: | Single Row |
| Highlight: | IKO Needle Roller Bearing,HK1816 Needle Roller Bearing,18x24x16mm IKO Roller Bearings |
||

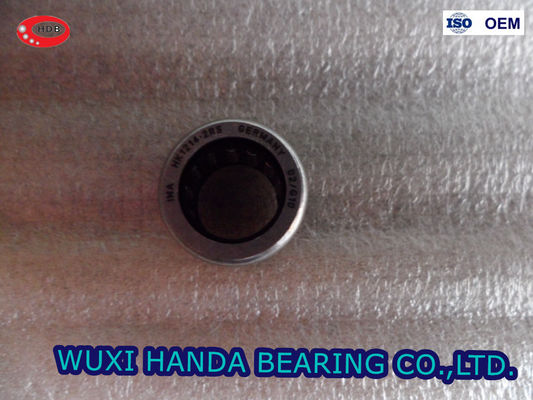

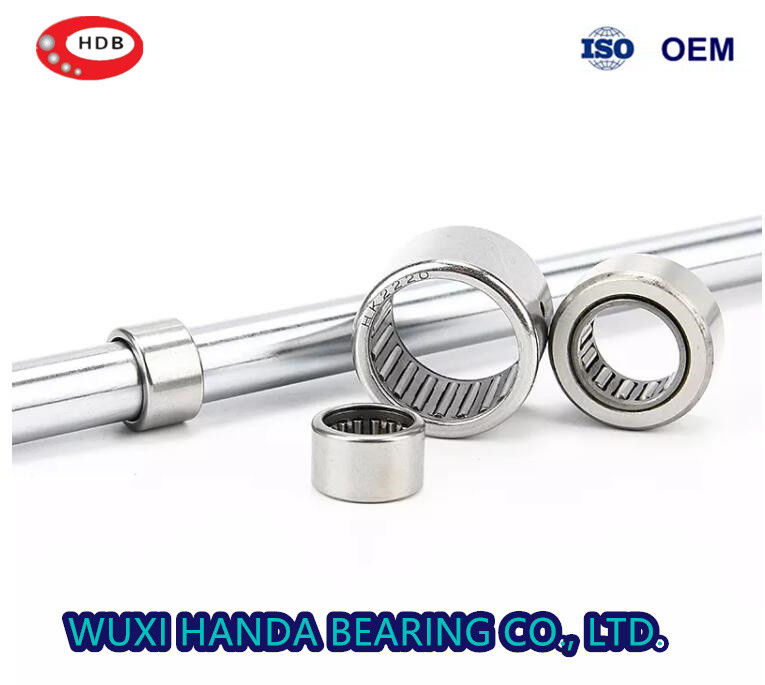

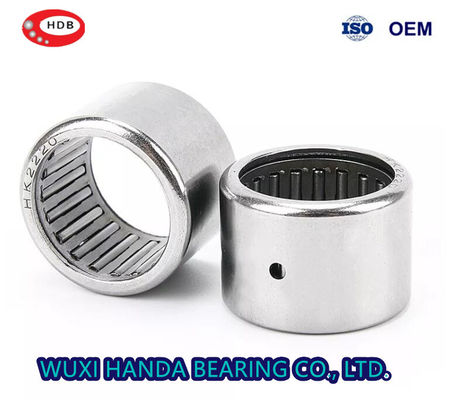

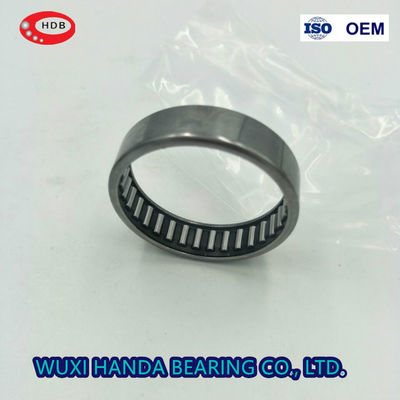

HK1816 BK1816 IKO Needle Roller Bearing Size 18 X 24 X 16mm Weight 0.018Kg HK Series
Features of hk one way needle bearing :
HK is a one way needle clutch which applied flexibly of the technology of small bearings ,and
make the structure more compact as well as higher performance.
Material of hk one way needle bearing :
Outer ring: is made by sintered metal
Spring: is made by stainless steel
| Drawn cup needle roller Bearings | |||||||
| Bearing Designation | Boundary Dimensions | Basic Load Ratings | Limiting Speed | ||||
| HK | BK | Fw | D | C | Cr Dynamic | Cor Static | Oil |
| mm | mm | mm | Nm | Nm | |||
| HK0306TN | BK0306TN | 3 | 6.5 | 6 | 1320 | 950 | 60000 |
| HK0408TN | BK0408TN | 4 | 8 | 8 | 1540 | 1070 | 40000 |
| HK0509 | BK0509 | 5 | 9 | 9 | 2200 | 1790 | 36000 |
| HK0608 | - | 6 | 10 | 8 | 1830 | 1550 | 32000 |
| HK0609 | BK0609 | 6 | 10 | 9 | 2650 | 2400 | 3000 |
| HK0708 | - | 7 | 11 | 8 | 2800 | 2150 | 27000 |
| HK0709 | BK0709 | 7 | 11 | 9 | 2800 | 2150 | 27000 |
| HK0808 | BK0808 | 8 | 12 | 8 | 2550 | 2400 | 21000 |
| HK0810 | BK0810 | 8 | 12 | 10 | 3700 | 3450 | 21000 |
| HK08×14×10 | - | 8 | 14 | 10 | 3800 | 3950 | 25000 |
| HK08×14×12 | - | 8 | 14 | 12 | 4100 | 4320 | 25000 |
| HK0910 | BK0910 | 9 | 13 | 10 | 4050 | 4250 | 25000 |
| HK0912 | - | 9 | 13 | 12 | 5000 | 6000 | 25000 |
| HK1010 | BK1010 | 10 | 14 | 10 | 3900 | 4800 | 19000 |
| HK1012 | BK1012 | 10 | 14 | 10 | 5000 | 6300 | 19000 |
| HK1015 | - | 10 | 14 | 15 | 6700 | 7800 | 19000 |
| HK10×16×10 | - | 10 | 16 | 10 | 6800 | 8800 | 18000 |
| HK10×16×12 | - | 10 | 16 | 12 | 6800 | 8800 | 18000 |
| HK10×16×15 | - | 10 | 16 | 15 | 6800 | 8800 | 19000 |
| HK1210 | BK1210 | 12 | 16 | 10 | 4150 | 5800 | 19000 |
| HK1212 | BK1212 | 12 | 18 | 12 | 3800 | 5100 | 15000 |
| HK12×17×12 | - | 12 | 17 | 12 | 5100 | 7000 | 15000 |
| HK12×17×15 | - | 12 | 17 | 15 | 5100 | 7000 | 15000 |
| HK12×17×18 | - | 12 | 17 | 18 | 5100 | 7000 | 15000 |
| HK12×18×12 | BK12×18×12 | 12 | 18 | 12 | 550 | 6300 | 17000 |
| HK1312 | BK1312 | 13 | 19 | 12 | 6200 | 7100 | 17000 |
| HK13.5×20×12 | - | 13.5 | 20 | 12 | 6250 | 7590 | 16000 |
| HK1412 | - | 14 | 20 | 12 | 6800 | 7500 | 14000 |
| HK1416 | - | 14 | 20 | 16 | 7300 | 9000 | 14000 |
| HK15×20×12 | - | 15 | 20 | 12 | 5800 | 6000 | 14000 |
| HK15×20×16 | - | 15 | 20 | 16 | 6000 | 6200 | 14000 |
| HK15×20×20 | - | 15 | 20 | 20 | 6100 | 6400 | 14000 |
| HK1512 | BK1512 | 15 | 21 | 12 | 7000 | 8400 | 14000 |
| HK1514 | - | 15 | 21 | 14 | 8500 | 10400 | 13000 |
| HK1515 | - | 15 | 21 | 15 | 9100 | 11400 | 13000 |
| HK1516 | BK1516 | 15 | 21 | 16 | 9800 | 11400 | 14000 |
| HK1522 | - | 15 | 21 | 22 | 10400 | 16500 | 14000 |
| HK15×22×12 | - | 15 | 22 | 12 | 14300 | 18400 | 13000 |
| HK1612 | BK1612 | 16 | 22 | 12 | 7100 | 9200 | 14000 |
| HK1614 | - | 16 | 22 | 14 | 8800 | 9900 | 12000 |
| HK1616 | BK1616 | 16 | 22 | 16 | 10100 | 14300 | 14000 |
| HK1622 | - | 16 | 22 | 22 | 11100 | 17400 | 14000 |
| HK1712 | - | 17 | 23 | 12 | 6900 | 9300 | 13000 |
| HK1714 | - | 17 | 23 | 14 | 6800 | 10200 | 10000 |
| HK1716 | - | 17 | 23 | 16 | 8500 | 12500 | 10000 |
| HK1718 | - | 17 | 23 | 18 | 9500 | 10600 | 10000 |
| HK17×25×14 | - | 17 | 25 | 14 | 13100 | 147000 | 10000 |
| HK17×25×18 | - | 17 | 25 | 18 | 9500 | 10600 | 11000 |
| HK1812 | - | 18 | 24 | 12 | 7100 | 9900 | 12000 |
| HK1816 | BK1816 | 18 | 24 | 16 | 10600 | 15300 | 12000 |
| HK2010 | - | 20 | 26 | 10 | 5900 | 7200 | 10000 |
| HK2014 | - | 20 | 26 | 14 | 9700 | 18100 | 9000 |
| HK2016 | BK2016 | 20 | 26 | 16 | 11700 | 29100 | 10000 |
| HK2018 | - | 20 | 26 | 18 | 7900 | 12800 | 9000 |
| HK2020 | - | 20 | 26 | 20 | 13700 | 24000 | 10000 |
| HK2030 | - | 20 | 26 | 30 | 21800 | 40000 | 10100 |
| HK20×27×20 | - | 20 | 27 | 20 | 26300 | 47800 | 9900 |
| HK2210 | - | 22 | 28 | 10 | 7200 | 9500 | 10010 |
| HK2212 | BK2212 | 22 | 28 | 12 | 8100 | 10400 | 10010 |
| HK22×29×30 | - | 22 | 29 | 30 | 19400 | 33100 | 9000 |
| HK2512 | BK2512 | 25 | 32 | 12 | 10000 | 14200 | 9000 |
| HK2525 | BK2525 | 25 | 32 | 25 | 22200 | 36700 | 9000 |
| HK2816 | BK2816 | 28 | 35 | 16 | 15400 | 22500 | 8700 |
| HK2820 | BK2820 | 28 | 35 | 20 | 18900 | 32000 | 8700 |
| HK3012 | BK3012 | 30 | 37 | 12 | 10100 | 16200 | 8100 |
| HK3020 | BK3020 | 30 | 37 | 20 | 19700 | 33500 | 8100 |
| HK3224 | - | 32 | 39 | 24 | 25500 | 5200 | 7300 |
| HK3516 | BK3516 | 35 | 42 | 16 | 15700 | 27500 | 7100 |
| HK4012 | BK4012 | 40 | 47 | 12 | 14000 | 24300 | 6300 |
| HK4512 | BK4512 | 45 | 52 | 12 | 12900 | 22500 | 5800 |
| HK5020 | BK5020 | 50 | 58 | 20 | 28000 | 60000 | 5300 |
| HK6012 | BK6012 | 60 | 68 | 12 | 12400 | 29000 | 4100 |
| Package | Plastic Tube for bearings, and carton package outside | ||||||
| Shipping | Express,air shipment, and sea shipment are available | ||||||
| Service | OEM Service, and can print your own logo after authorization | ||||||
