Product Details:
|
| Type: | Roller | No. Of Row: | Single Row |
|---|---|---|---|
| Size: | 85x130x29mm | Weight: | 1.33 Kg |
| Precision Rating: | P0 P6 P5 P4 P2 | Vibration: | Z1,Z2,Z3 |
| Highlight: | 85x130x29mm Roller Bearing Single Row,32017 Roller Bearing Single Row,32021 Bearing |
||

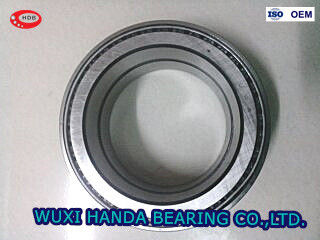

Good price 32017 roller bearing Size 85x130x29mm Weight 1.33 kgs 32021 Single row High Precision P0 P6 P5 P4 P2
| Item Name | Chrome Steel Tapered Roller Bearing Bearing 32017 |
| Material | Chrome Steel/Gcr15/Carbon Steel |
| Application | Auto, tractor, machine tool, electric machine, water pump, agricultural machinery, textile machinery and so on |
| Clearance | C0,C2,C3,C4,C5 |
| Bore Size | 85mm Outer Diameter : 130mm |
| Cage Type | Brass;steel plate,nylon,aluminium alloy etc. |
| Bearing Package | Pallet,wooden case,commercial packaging or as customers' requirement. |
| Delivery Time | 3-5 working days according the quantity |
| Advantage | low friction,Minimum lubrication,Wear resistant,Running in not required,Requires Little attention,Dimensions relatively small,No scraping required to fit shaft,Easy replacement |
|
Service
|
1)Courier tracking number 2)Documents you need 3)Customer satisfy survey 4)Any other reasonable requirements as per requested |
| Taper roller bearings are for industrial use and auto parts. The taper roller angles allow the bearing to hand a combination of radial and thrust loads. The steeper he cup angle, the greater the ability of bearing to handle thrust loads. We can provide taper roller bearings as your requirements | |
WE ALSO HAVE THESE GOST MODELS :
27305 7202 7302 7503 7603 2007922 3007206 2007119 27316 7213 7313 7514 7614 2007948 3007217 2007138
27306 7203 7303 7504 7604 2007924 3007207 2007120 27317 7214 7314 7515 7615 2007952 3007218 2007140
27307 7204 7304 7505 7605 2007926 3007208 2007121 27318 7215 7315 7516 7616 2007956 3007219 2007144
27308 7205 7305 7506 7606 2007928 3007209 2007122 27319 7216 7316 7517 7617 2007960 3007220 2007148
27309 7206 7306 7507 7607 2007930 3007210 2007124 27320 7217 7317 7518 7618 7226 2007115 2007152
27310 7207 7307 7508 7608 2007932 3007211 2007126 27321 7218 7318 7519 7619 7228 2007116 2007156
27311 7208 7308 7509 7609 2007934 3007212 2007128 27322 7219 7319 7520 7620 7230 2007117 2007160
27312 7209 7309 7510 7610 2007936 3007213 2007130 27324 7220 7320 7521 7621 7232 2007118 2007164
27313 7210 7310 7511 7611 2007938 3007214 2007132 27326 7221 7321 7522 7622 7234 7326
27314 7211 7311 7512 7612 2007940 3007215 2007134 27328 7222 7322 7524 7624 7236 7328
27315 7212 7312 7513 7613 2007944 3007216 2007136 27330 7224 7324 7526 7626 7238 7330
Bearing Types :
Related Taper Roller Bearing Catalogue :
| Bearing No | Boundary dimensions (mm) | Weight (kg) | ||
| d | D | T | ||
| 32004 Bearing | 20 | 42 | 15 | 0.096 |
| 32005 Bearing | 25 | 47 | 15 | 0.115 |
| 32006 Bearing | 30 | 55 | 17 | 0.172 |
| 32007 Bearing | 35 | 62 | 18 | 0.227 |
| 32008 Bearing | 40 | 68 | 19 | 0.27 |
| 32009 Bearing | 45 | 75 | 20 | 0.329 |
| 32010 Bearing | 50 | 80 | 20 | 0.365 |
| 32011 Bearing | 55 | 90 | 23 | 0.55 |
| 32012 Bearing | 60 | 95 | 23 | 0.586 |
| 32013 Bearing | 65 | 100 | 23 | 0.627 |
| 32014 Bearing | 70 | 110 | 25 | 0.842 |
| 32015 Bearing | 75 | 115 | 25 | 0.887 |
| 32016 Bearing | 80 | 125 | 29 | 1.27 |
| 32017 Bearing | 85 | 130 | 29 | 1.33 |
| 32018 Bearing | 90 | 140 | 32 | 1.73 |
| 32019 Bearing | 95 | 145 | 32 | 1.8 |
| 32020 Bearing | 100 | 150 | 32 | 1.87 |
| 32021 Bearing | 105 | 160 | 35 | 2.38 |
| 32022 Bearing | 110 | 170 | 38 | 3.05 |
| 32024 Bearing | 120 | 180 | 38 | 3.2 |
Packing sample:
BEARING WORK SHOP AND WAREHOUSE SHOW:
Delivery Ways for Bearing :
by Express / Courier
by Air plane
by Sea
by Railway / train
FAQ :
Q : When can I get the price?
A : after we get your inquiry, usually within 2-6 hours. Urgent will be faster.
Q : How about your quality of bearings?
A : Our quality of bearings is based on ISO9001 and quality of bearing is our soul.
Q : Can I get free samples for test from your company?
A : YES, Standard samples are available.
Q : What is the MOQ of your products?
A : Usually ≥1, According your demand.
Q : How about the Delivery time?
A : About 3-15days. (according your quantity of bearing.)
Q : Will you check these products before shipment?
A : Yes, before shipment products will be strictly inspection on our factory QC Process System. We have a professional QC team.
