Product Details:
|
Material: | Chrome Steel /GCr15 | Feature: | Stable Performance Low Voice |
---|---|---|---|
Structure: | Tapered | Vibration: | Z1V1 Z2V2 Z3V3 Z4V4 |
Application: | Motor/electric Accessories/ Skateboard/Wheels/etc | Precision: | P0(ABEC1), P6(ABEC3) ,P5(ABEC5,)P4(ABEC7), P2(ABEC9) |
Highlight: | Waterproof SKF Tapered Roller Bearing,30309 SKF Tapered Roller Bearing,30310 Bearing |

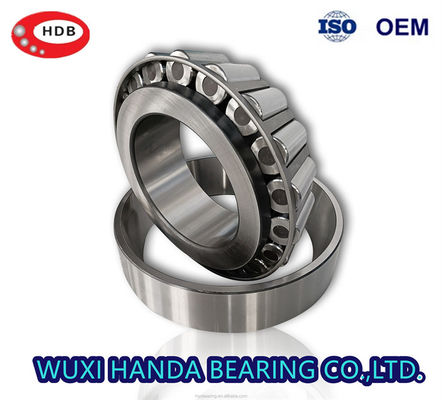

30309 J2/Q weight 1.01 kgs SKF 30310 J2/Q tapered roller bearing waterproof marine trailer Size 100x45x25mm
1. SKF Taper Roller Bearings

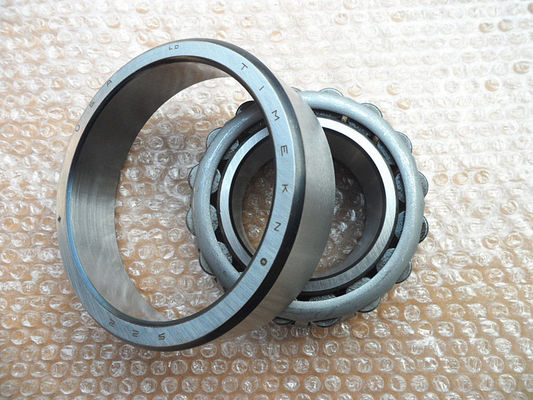

Tapered roller bearings comprise an outer and inner ring with tapered raceways as well as tapered rollers in a window cage. These are single row individual bearings, usually of open design, which for technical reasons are always adjusted against a second tapered roller bearing in a mirror image arrangement. Open bearings are not self-retaining. As a result, the inner ring with the rollers and the cage can be mounted separately from the outer ring.
Tapered roller bearings can support high radial and axial loads in equal measure. Depending on the arrangement, they are suitable when precise axial guidance of the shaft is required (locating bearing function), or when the bearing arrangement must have very high axial rigidity and be operated clearance-free or under preload.
Tapered roller bearings are available as:
1 single row tapered roller bearings of standard design
2 matched tapered roller bearings (fitted in pairs in X, O or tandem arrangement, open design)
3 integral tapered roller bearings (fitted in pairs, sealed on one side, not separable).
2. Description
1) Quality: High speed, Low noise and Long life.
2) Products Can be customized according to your needs.
3) Application: Mining, Wind Electricity, Equipment, Machine Tool, Auto, Motor, Pump Train etc
3. Taper Roller Bearings Feature
1) Competitive price with prompt delivery.
2) Manufactory in Shandong Province.
3) Durability with long life.
4) Smooth, silent and low vibration.
5) OEM is availbale.
6) Extensive range of bearing types, price, quality.
7) Professional staffs with the best services.
Item Name | Chrome Steel Tapered Roller Bearing Bearing 30309 |
Material | Chrome Steel/Gcr15/Carbon Steel |
Application | Auto, tractor, machine tool, electric machine, water pump, agricultural machinery, textile machinery and so on |
Clearance | C0,C2,C3,C4,C5 |
Bore Size | 45mm Outer Diameter : 100mm |
Cage Type | Brass;steel plate,nylon,aluminium alloy etc. |
Bearing Package | Pallet,wooden case,commercial packaging or as customers' requirement. |
Delivery Time | 3-5 working days according the quantity |
Advantage | low friction,Minimum lubrication,Wear resistant,Running in not required,Requires Little attention,Dimensions relatively small,No scraping required to fit shaft,Easy replacement |
Service
|
1) Courier tracking number 2) Documents you need 3) Customer satisfy survey 4) Any other reasonable requirements as per requested |
Taper roller bearings are for industrial use and auto parts. The taper roller angles allow the bearing to hand a combination of radial and thrust loads. The steeper he cup angle, the greater the ability of bearing to handle thrust loads. We can provide taper roller bearings as your requirements |
Related Taper Roller Bearing Catalogue :
D(mm) | d(mm) | B(mm) | Weight(kg) | |
4T-30306 | 72 | 30 | 19 | 0.398 |
4T-30306D | 72 | 30 | 19 | 0.398 |
4T-32306 | 72 | 30 | 27 | 0.592 |
4T-320/32X | 58 | 32 | 17 | 0.181 |
4T-332/32 | 65 | 32 | 26 | 0.395 |
4T-323/32C | 75 | 32 | 28 | 0.659 |
32907XU | 55 | 35 | 14 | 0.121 |
4T-32007X | 62 | 35 | 18 | 0.224 |
4T-33007 | 62 | 35 | 21 | 0.263 |
4T-30207 | 72 | 35 | 17 | 0.344 |
4T-32207 | 72 | 35 | 23 | 0.457 |
4T-32207C | 72 | 35 | 23 | 0.461 |
4T-32207CR | 72 | 35 | 23 | 0.461 |
4T-33207 | 72 | 35 | 28 | 0.531 |
4T-30307 | 80 | 35 | 21 | 0.54 |
4T-30307C | 80 | 35 | 21 | 0.517 |
4T-30307D | 80 | 35 | 21 | 0.53 |
4T-32307 | 80 | 35 | 31 | 0.787 |
4T-32307C | 80 | 35 | 31 | 0.797 |
32908XU | 62 | 40 | 15 | 0.161 |
4T-32008X | 68 | 40 | 19 | 0.273 |
4T-33008 | 68 | 40 | 22 | 0.312 |
4T-33108 | 75 | 40 | 26 | 0.494 |
4T-30208 | 80 | 40 | 18 | 0.435 |
4T-32208 | 80 | 40 | 23 | 0.558 |
4T-33208 | 80 | 40 | 32 | 0.728 |
4T-T2EE040 | 85 | 40 | 32.5 | 0.907 |
4T-30308 | 90 | 40 | 23 | 0.769 |
4T-30308C | 90 | 40 | 23 | 0.728 |
4T-30308D | 90 | 40 | 23 | 0.738 |
32308U | 90 | 40 | 33 | 1.08 |
4T-32308C | 90 | 40 | 33 | 1.1 |
32909XU | 68 | 45 | 15 | 0.188 |
4T-32009X | 75 | 45 | 20 | 0.346 |
4T-33009 | 75 | 45 | 24 | 0.398 |
4T-33109 | 80 | 45 | 26 | 0.542 |
4T-30209 | 85 | 45 | 19 | 0.495 |
4T-32209 | 85 | 45 | 23 | 0.607 |
4T-33209 | 85 | 45 | 32 | 0.783 |
4T-30309 | 100 | 45 | 25 | 1.01 |
4T-30309D | 100 | 45 | 25 | 0.958 |
32309U | 100 | 45 | 36 | 1.46 |
32910XU | 72 | 50 | 15 | 0.191 |
32910 | 72 | 50 | 14 | 0.192 |
4T-32010X | 80 | 50 | 20 | 0.366 |
4T-33010 | 80 | 50 | 24 | 0.433 |
4T-33110 | 85 | 50 | 26 | 0.58 |
4T-30210 | 90 | 50 | 20 | 0.563 |
4T-32210 | 90 | 50 | 23 | 0.648 |
4T-33210 | 90 | 50 | 32 | 0.852 |
4T-T2ED050 | 100 | 50 | 35 | 1.31 |
4T-T7FC050 | 105 | 50 | 29 | 1.23 |
4T-30310 | 110 | 50 | 27 | 1.31 |
4T-30310D | 110 | 50 | 27 | 1.25 |
32310U | 110 | 50 | 40 | 1.92 |
32911XU | 80 | 55 | 17 | 0.274 |
4T-32011X | 90 | 55 | 23 | 0.563 |
4T-33011 | 90 | 55 | 27 | 0.643 |
4T-33111 | 95 | 55 | 30 | 0.846 |
4T-30211 | 100 | 55 | 21 | 0.74 |
4T-32211 | 100 | 55 | 25 | 0.876 |
4T-33211 | 100 | 55 | 35 | 1.15 |
4T-30311 | 120 | 55 | 29 | 1.66 |
4T-30311D | 120 | 55 | 29 | 1.59 |
32311U | 120 | 55 | 43 | 2.44 |
32912XA | 85 | 60 | 17 | 0.296 |
4T-32012X | 95 | 60 | 23 | 0.576 |
4T-33012 | 95 | 60 | 27 | 0.684 |
4T-33112 | 100 | 60 | 30 | 0.912 |
Ball Bearing | Deep Groove Ball Bearing |
60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **, 160 **(70001 ) |
Thrust Ball Bearing | 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series | |
Angular Contact Ball bearing | SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series | |
Roller Bearing | Spherical Roller bearing | 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on |
Taper Roller Bearing | 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc. | |
Thrust Roller Bearing | 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series. | |
Cylindrical Roller Bearing | NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used inSteel Industry. |
Everyone knows that rolling bearings are composed of four parts: inner ring, outer ring, rollers and cage. We have achieved full coverage of the four parts in bearing production and processing. The processing of the ferrule starts from the bearing steel rod material is heated and cut at 850 degrees inductance. After forging, the ferrule blank that meets the process requirements is produced. Then after turning, the appearance size of the product is improved, and the heat treatment process achieves the internal structure and hardness of the part material to meet the process requirements under high temperature conditions. The final grinding process further improves product accuracy and achieves the technological requirements of the finished bearing. The rollers and cages are basically the same as the ferrule processing, starting from the raw material to the completion of the finished product.
OEM Work well in our factory :
