Product Details:
|
| Bearing No.: | 239/670-B-MB 239/670-B-K-MB C3 | Type: | Spherical Roller Bearing |
|---|---|---|---|
| Cage Type: | M - Brass Cage | Size: | 670 X 900 X 170mm |
| Weight: | 307.2 Kgs | HS Code: | 8482300000 |
| Precision: | Standard Precision | Bore: | C - Cylindrical Bore |
| Lubrication Enhancement: | W33 - Lubrication Groove And 3 Holes | ||
| Highlight: | Precision FAG Spherical Roller Bearing,ISO9001 FAG Spherical Roller Bearing |
||

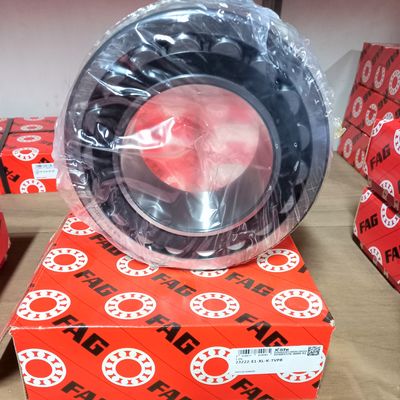

The 239/670-B-MB FAG is a spherical roller bearing. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc
MB---Feature a two piece precision-machined brass cage. These bearings incorporate strengthened symmetric rollers, and are equivalent to CC design in load capacity.
| Design | B | with fixed central rib |
| Bore type | Z | Cylindrical |
| Cage | MB | Solid brass cage |
| Radial internal clearance | CN | Group N (CN) |
| Relubrication feature | Standard |
| Bearings NO.(K) | d/mm | D/mm | B/mm | Weight/kg |
| 24120 | 100 | 165 | 65 | 5.65 |
| 24122 | 110 | 180 | 69 | 6.9 |
| 24124 | 120 | 200 | 62 | 7.63 |
| 24126 | 130 | 210 | 80 | 11.7 |
| 24128 | 140 | 225 | 85 | 13.2 |
| 24130 | 150 | 250 | 100 | 20.4 |
| 24132 | 160 | 270 | 109 | 25.4 |
| 24134 | 170 | 280 | 109 | 27.9 |
| 24136 | 180 | 300 | 118 | 34.7 |
| 24138 | 190 | 320 | 128 | 42.9 |
| 24140 | 200 | 340 | 140 | 50.5 |
| 24144 | 220 | 370 | 150 | 68.8 |
| 24148 | 240 | 400 | 160 | 81.6 |
| 24152 | 260 | 440 | 180 | 112 |
| 24156 | 280 | 460 | 180 | 122 |
| 24160 | 300 | 500 | 200 | 159 |
| 24164 | 320 | 540 | 218 | 247 |
| 24168 | 340 | 580 | 243 | 267 |
| 24172 | 360 | 600 | 243 | 280 |
| 24176 | 380 | 620 | 243 | 288 |
| 24180 | 400 | 650 | 250 | 340 |
| 24184 | 420 | 700 | 280 | 445 |
| 24188 | 460 | 720 | 280 | 460 |
| 24192 | 460 | 760 | 300 | 539 |
| 24196 | 480 | 790 | 308 | 602 |
| 241/500 | 500 | 830 | 325 | 715 |
| 241/530 | 530 | 870 | 335 | 792 |
| 241/560 | 560 | 920 | 355 | 949 |
| 239/630 | 630 | 850 | 165 | 272.5 |
| 239/670 | 670 | 900 | 170 | 307.2 |
| 239/710 | 710 | 950 | 180 | 389 |
1 ) . Cement Industry
2 ) . Metal Industry
3 ) . Thermal power plant
4 ) . Baler Bearings
