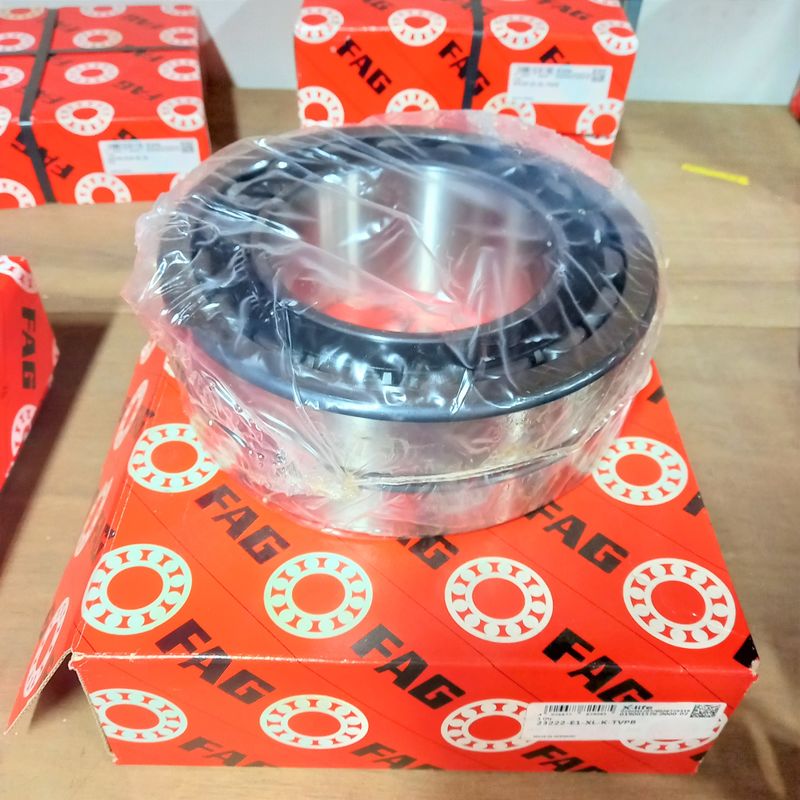

Double Row FAG Spherical Roller Bearing 241/530 Agricultural Machinery Bearings

Double Row FAG Spherical Roller Bearing 241/530 Agricultural Machinery Bearings
Double Row FAG Spherical Roller Bearing 241/530 Agricultural Machinery Bearings

Large Image :  Double Row FAG Spherical Roller Bearing 241/530 Agricultural Machinery Bearings

Product Details:
Place of Origin: GERMANY
Brand Name: FAG
Certification: ISO9001
Model Number: 241/530 BEA-XL-K30 MB1
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pcs
Packaging Details: Single Color Box Standard Packing
Delivery Time: 5-7 Works days
Payment Terms: T/T , Western Union, RMB
Supply Ability: 80,000 Pcs per Month
Contact Now

Double Row FAG Spherical Roller Bearing 241/530 Agricultural Machinery Bearings

Description
Bearing No.: 241/530 BEA-XL-K30 MB1 Type: Spherical Roller Bearing
Size: 530X870X335mm Weight: 784 Kgs
Row Number: Double Row Bore: K3 – 1:30 Tapered Bore
Design: BEA With Lose Center Lip Ring Cage: MB1 Solid Brass Cage
Highlight:

Double Row FAG Spherical Roller Bearing

,

241/530 FAG Spherical Roller Bearing

,

FAG Agricultural Machinery Bearings

FAG 241/530 BEA-XL-K30 Spherical Roller Bearing Size 530 X 870 X335 mm Weight 772.5 Kgs Agricultural Machinery Bearing



Spherical roller bearings 241/530 BEA-XL-K30MB1   241/530-BEA-XL-MB1C3

Bearing number : 241/530

Size (mm) : 530x870x335

Brand : FAG  Germany bearing

Bore Diameter (mm) : 530

Outer Diameter (mm) : 870

Width (mm) : 335

K - 12 mm

Weight - 784 Kg

Basic dynamic load rating (C) - 10388 kN

Basic static load rating (C0) - 18620 kN

(Grease) Lubrication Speed - 428,4 r/min

(Oil) Lubrication Speed - 504 r/min





Double Row FAG Spherical Roller Bearing 241/530 Agricultural Machinery Bearings 0



Suffix description :

  • B   Modified Internal Construction
  • K30          Tapered Bore, Taper 1:30
  • MB          Solid Brass Cage, Guidance On Inner Ring
  • C3           Internal Clearance Larger Than Normal

Spherical roller bearings Part of Models:


Bearings NO.(K) d/mm D/mm B/mm Weight/kg
24120 100 165 65 5.65
24122 110 180 69 6.9
24124 120 200 62 7.63
24126 130 210 80 11.7
24128 140 225 85 13.2
24130 150 250 100 20.4
24132 160 270 109 25.4
24134 170 280 109 27.9
24136 180 300 118 34.7
24138 190 320 128 42.9
24140 200 340 140 50.5
24144 220 370 150 68.8
24148 240 400 160 81.6
24152 260 440 180 112
24156 280 460 180 122
24160 300 500 200 159
24164 320 540 218 247
24168 340 580 243 267
24172 360 600 243 280
24176 380 620 243 288
24180 400 650 250 340
24184 420 700 280 445
24188 460 720 280 460
24192 460 760 300 539
24196 480 790 308 602
239/500 500 670 128 128.5
241/530 530 870 335 784
241/560 560 920 355 949
239/630 630 850 165 272.5
239/670 670 900 170 307.2
239/710 710 950 180 389



Spherical roller bearings with Brass Cage :

Double Row FAG Spherical Roller Bearing 241/530 Agricultural Machinery Bearings 1

Spherical roller bearings with Steel Cage :

Double Row FAG Spherical Roller Bearing 241/530 Agricultural Machinery Bearings 2



Application of Bearing :

1 ) . Cement Industry

Double Row FAG Spherical Roller Bearing 241/530 Agricultural Machinery Bearings 3



2 ) . Metal Industry



Double Row FAG Spherical Roller Bearing 241/530 Agricultural Machinery Bearings 4



3 ) . Thermal power plant



Double Row FAG Spherical Roller Bearing 241/530 Agricultural Machinery Bearings 5



4 ) . Baler Bearings



Double Row FAG Spherical Roller Bearing 241/530 Agricultural Machinery Bearings 6
