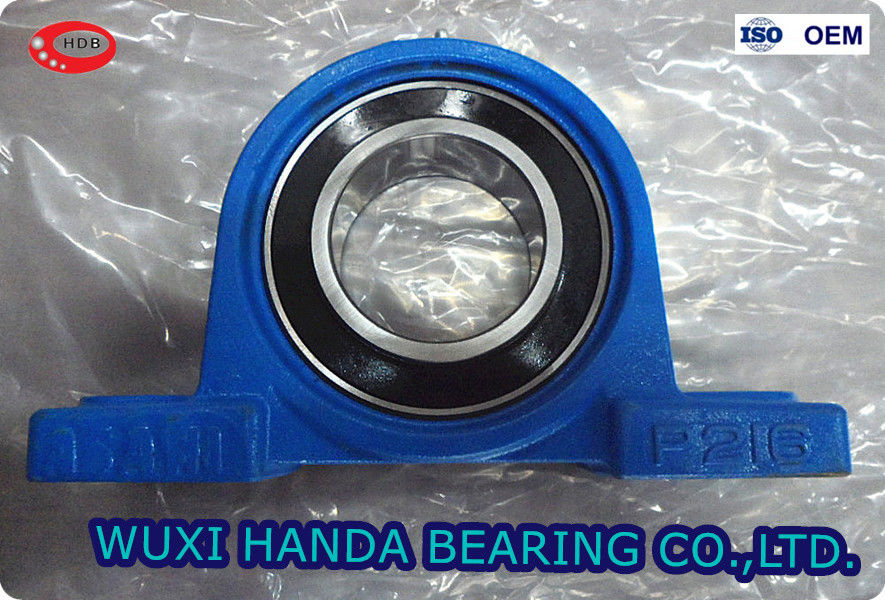

UCP316 Heavy Duty UCP 316 KOYO Plummer Block Bearing Japanese Standards For Agricultural Equipment Textile Industry
What does UCP mean in bearings ?
D1. C-UCP, CM-UCP (Cast iron covered bearing unit) C-UKP, CM-UKP (Cast iron covered bearing unit) A steel plate or cast iron cover is fitted to the outside of the cast iron bearing housing, effectively preventing entry of dust under usage conditions with high levels of dust or moisture.
How do pillow block bearings work ?
Pillow block bearings are installed on a surface by driving a fastener through these small holes. Pillow blocks work in the same way as most other bearings. The shaft of a machine or object can be inserted into a pillow block bearing to improve rotational movement.
| Main specifications |
| Item Number |
UCP 316 |
| Category |
Oval flange ball bearing |
| Material |
Chrome Steel GCR15 |
| Weight and Dimensions |
| Bore diameter |
80 mm |
| Overall length |
378 mm |
| Overall unit width |
93 mm |
| Overall height |
215 mm |
| Weight |
18.5 kg |
| Dynamic load capacity |
124 kN |
| Static load capacity |
86.5 kN |
| Product Properties |
| Bore |
Cylindrical |
| Seal |
Standard |
| Cage Type |
S - Steel or Standard Cage |
| External Modification |
No External Modification |
| Radial Internal Play |
Cn Normal Internal Play |
| Precision |
Standard Precision |
| Lubrication |
Standard Lubrication |
| Heat Stabilization |
No Heat Stabilization - Temperatures up to 120 °C |
| Special Treatment |
No Special Treatment |
Pillow block bearing UCP series :
UCP201, UCP202, UCP203, UCP204, UCP205, UCP206, UCP207,
UCP208, UCP209, UCP210, UCP211, UCP212, UCP213, UCP214
UCP215, UCP216, UCP217, UCP218, UCP305, UCP306, UCP307,
UCP308, UCP309, UCP310, UCP311, UCP312, UCP313, UCP314,
UCP315, UCP316, UCP317, UCP318, UCP319
Pillow block bearing UCF series :
UCF201, UCF202, UCF203, UCF204, UCF205, UCF206, UCF207,
UCF208, UCF209, UCF210, UCF211, UCF212, UCF213, UCF214,
UCF215, UCF216, UCF217, UCF218, UCF305, UCF306, UCF307,
UCF308, UCF309, UCF310, UCF311, UCF312, UCF313, UCF314,
UCF315, UCF316, UCF317, UCF318, UCF319
